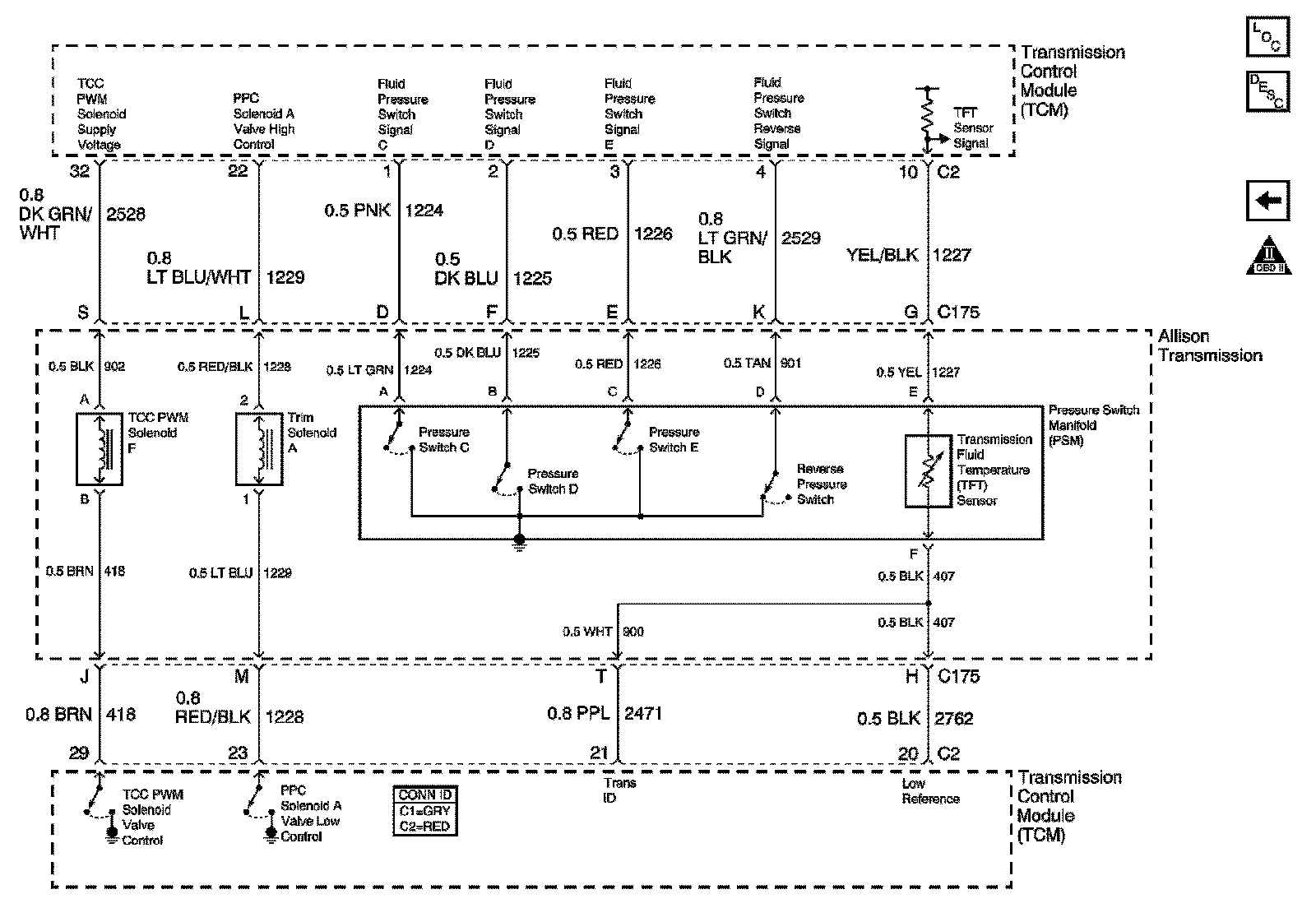

TCC Control, Pressure Switch, and Temp Sensor Signal
TCC Control, Pressure Switch, and Temp Sensor Signal
