Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2001
>>
C 2500 Suburban 2WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Dome Lamp
>>
Diagrams
>>
Connector Views
Connector Views
Dome Lamp:
Dome/Reading Lamp - Middle/Rear (Luxury):

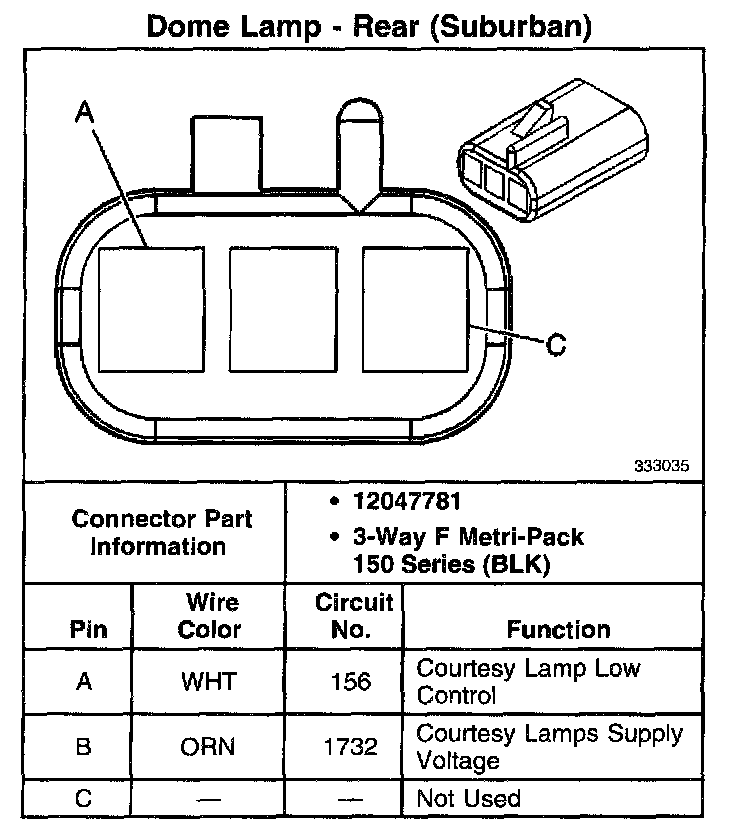

Dome Lamp - Rear (Suburban):
