Chevy Truck
>>
2001
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Control Module
>>
Diagrams
>>

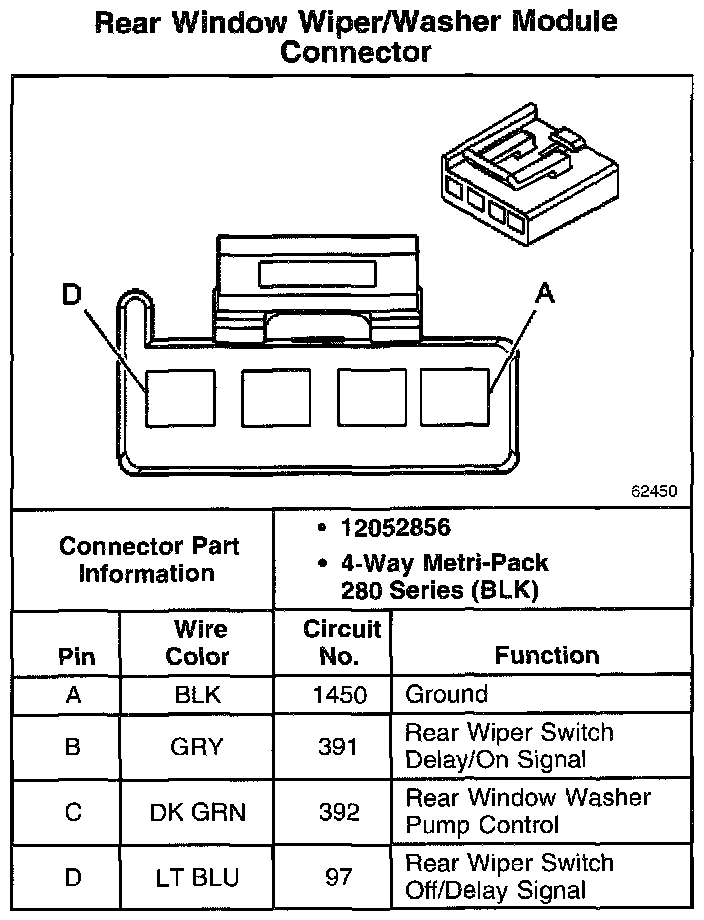

Rear Window Wiper/Washer Module Connector
Rear Window Wiper/Washer Module Connector
Rear Window Wiper/Washer Module Connector:
