Chevy Truck
>>
2001
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Locations
>>
Disassembled Views
>>
Internal Parts

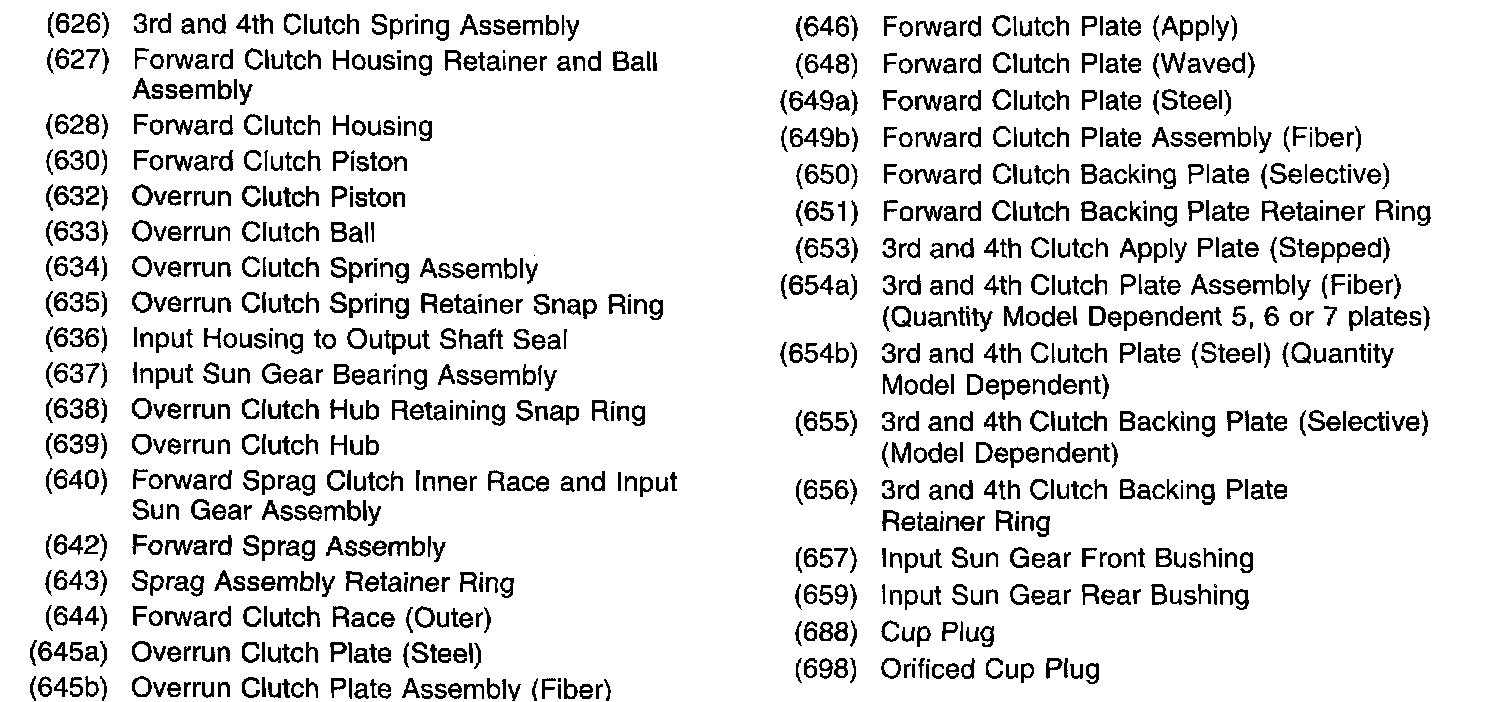

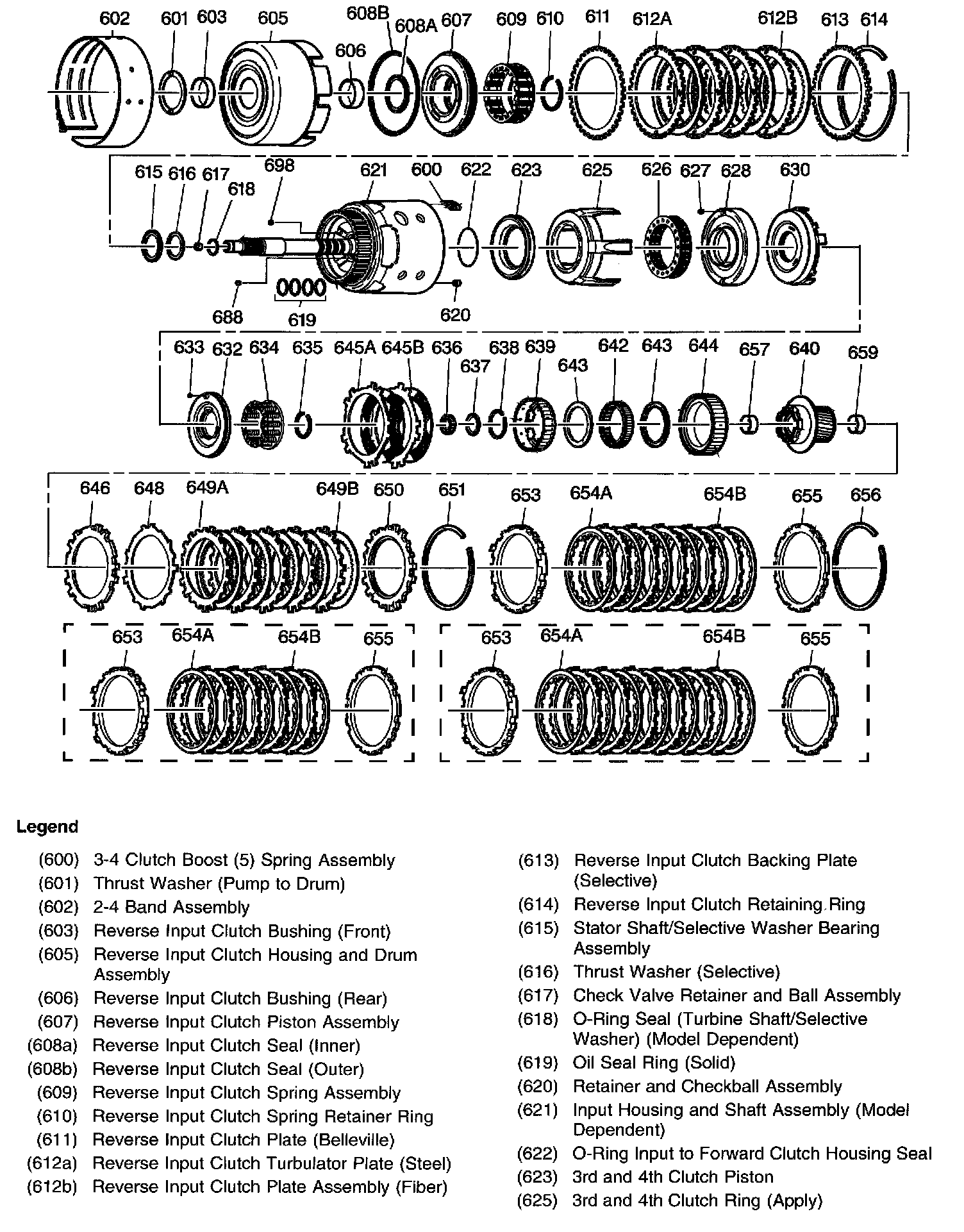

Internal Parts

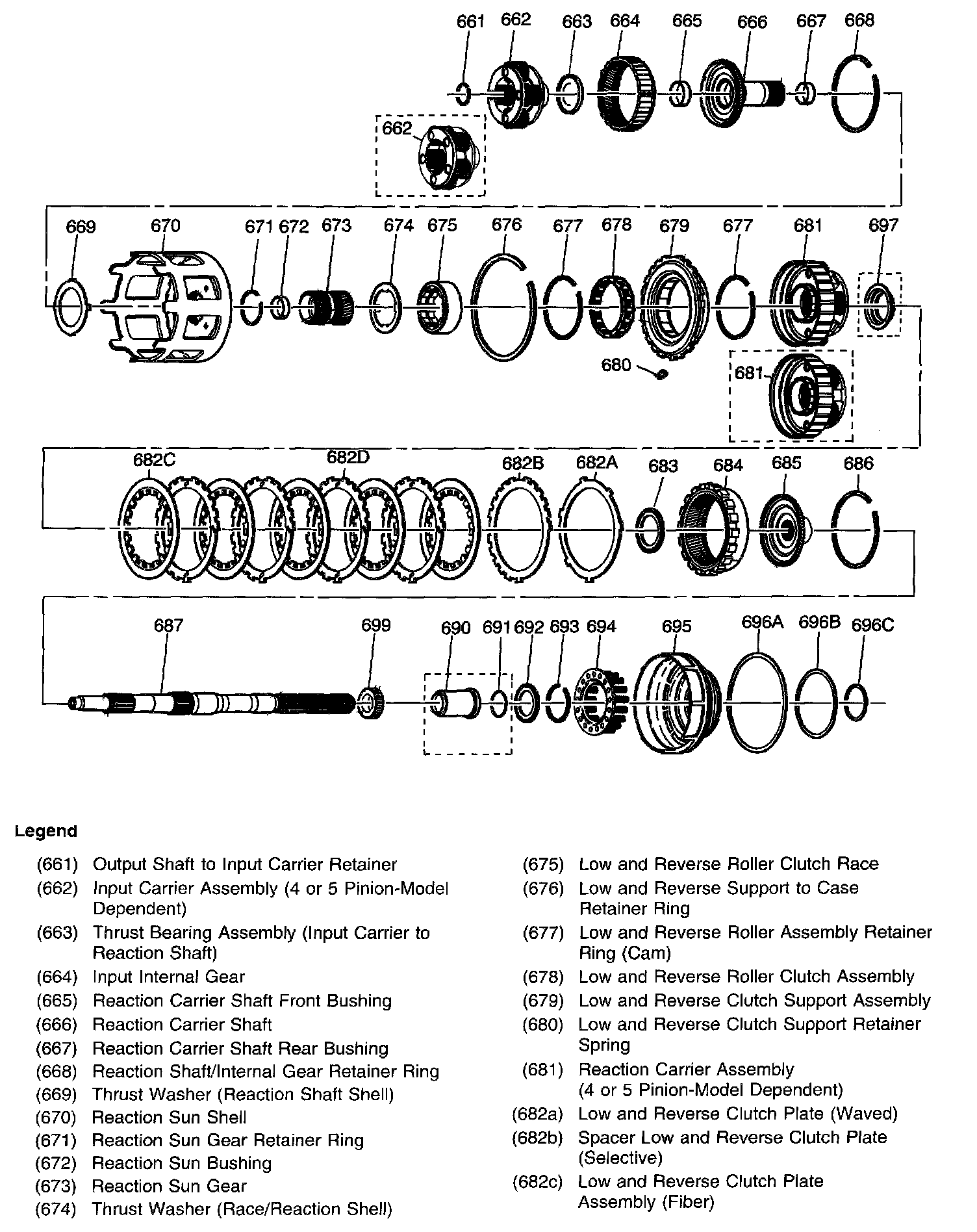

Internal Parts (1 of 2)

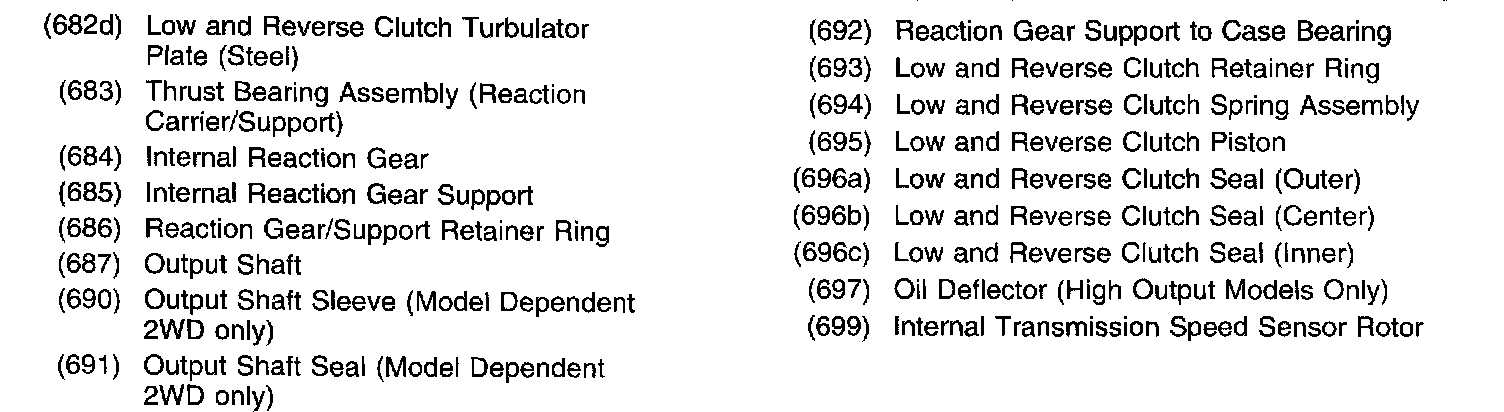

Internal Parts (2 of 2)
