Chevy Truck
>>
2001
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Locations
>>
Disassembled Views
>>
Case and Associated Parts

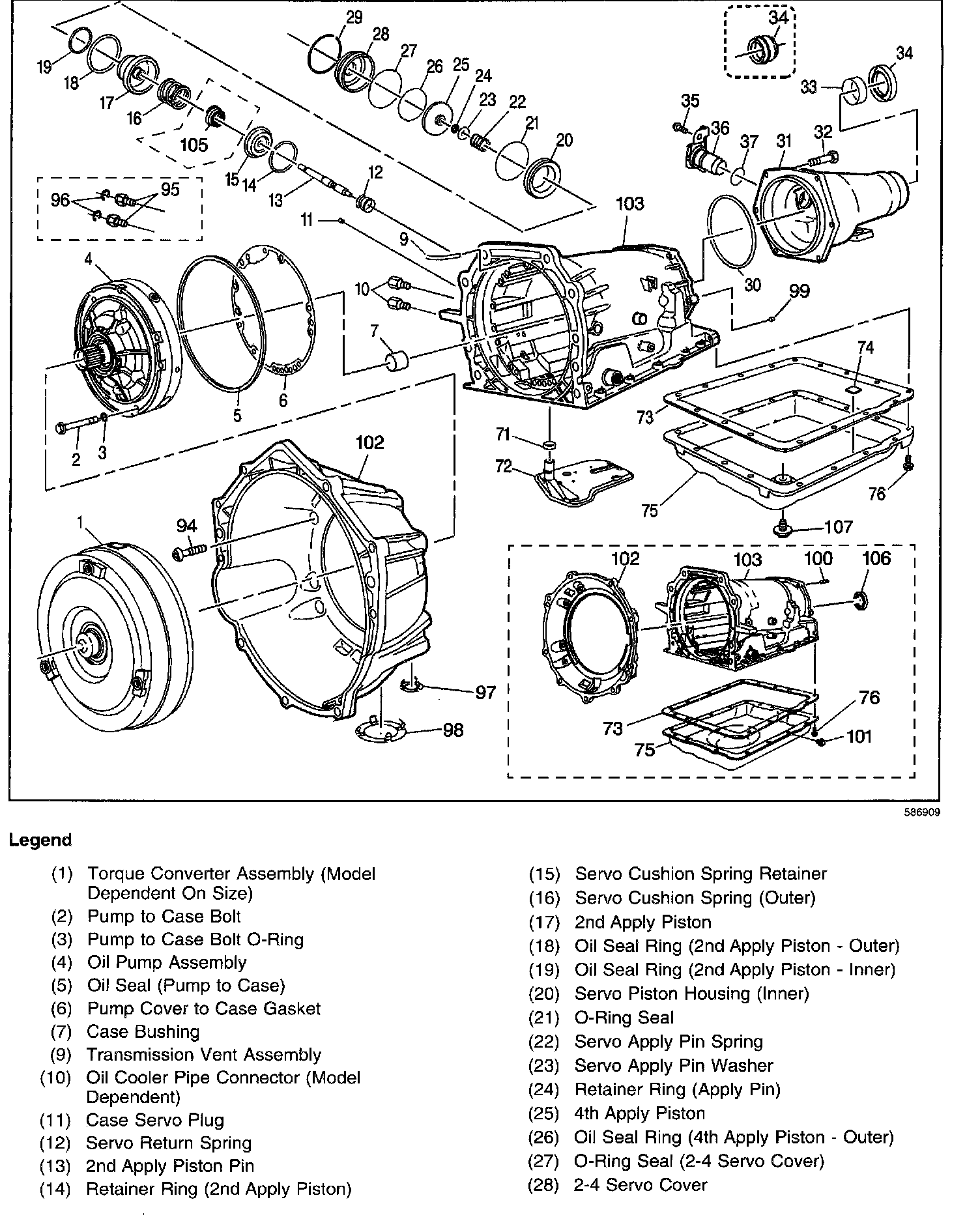

Case and Associated Parts

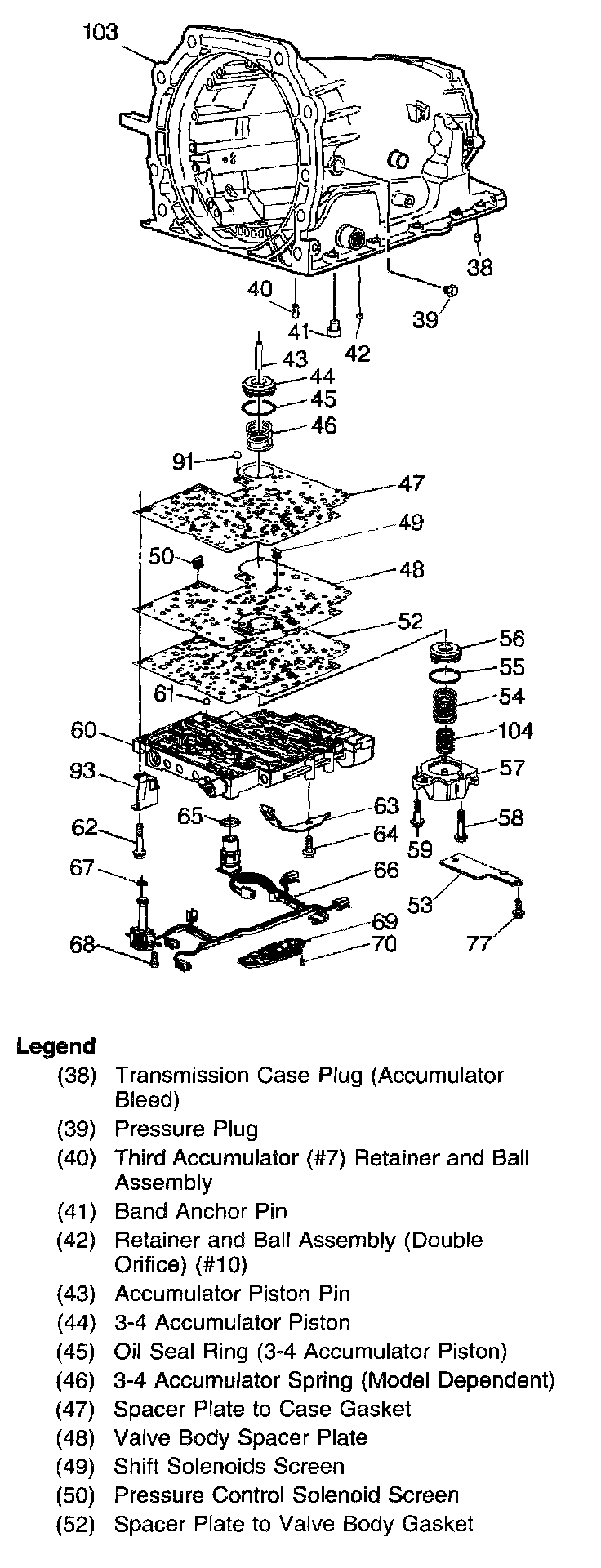

Case and Associated Parts (1 of 2)

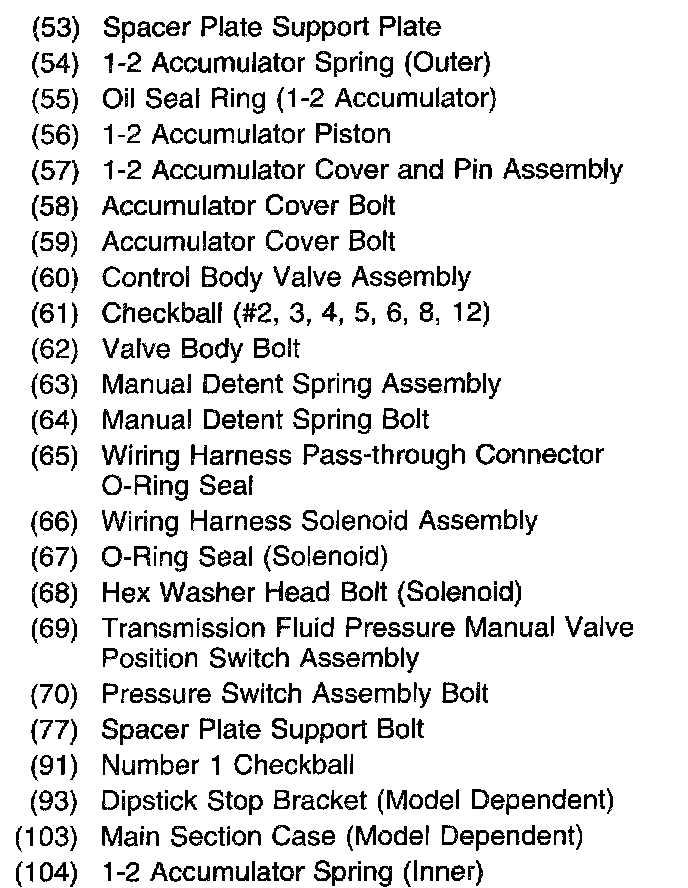

Case and Associated Parts (2 of 2)
