Chevy Truck
>>
2001
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
A/T Inline Harness Connector End Views
>>

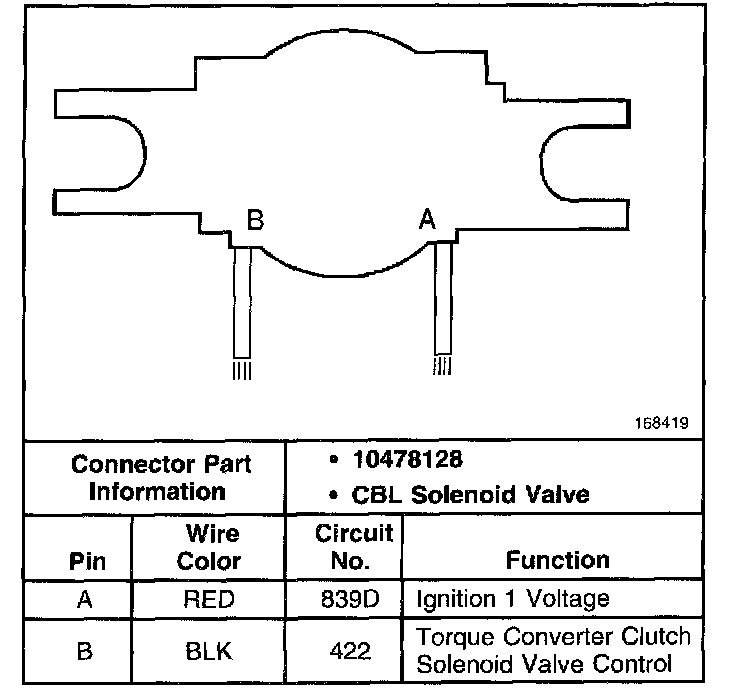

Torque Converter Clutch (TCC) Solenoid Valve Connector
Torque Converter Clutch (TCC) Solenoid Valve Connector
