Chevy Truck
>>
2001
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
A/T Inline Harness Connector End Views
>>

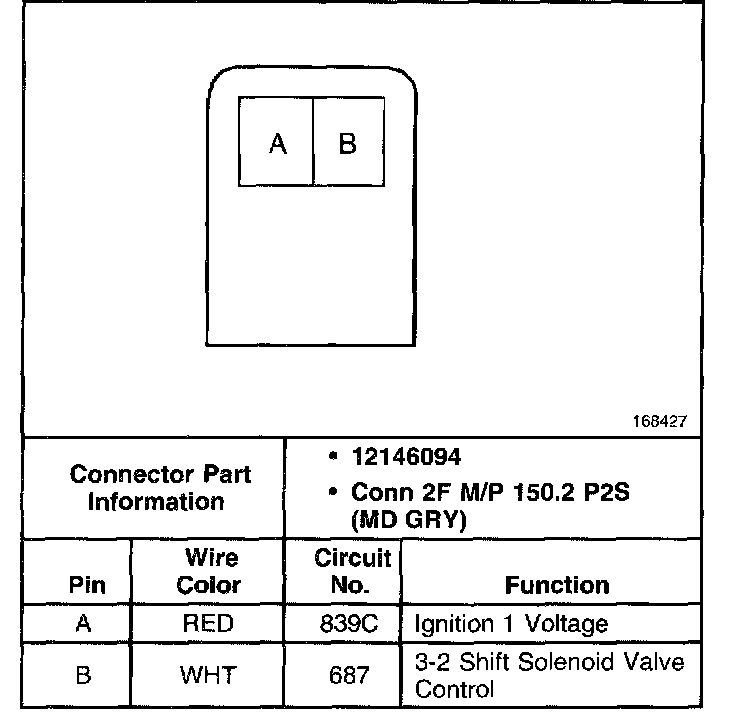

3-2 Shift Solenoid (SS) Valve Assembly Connector
3-2 Shift Solenoid (SS) Valve Assembly Connector
