Fuel Tank Unit: Description and Operation

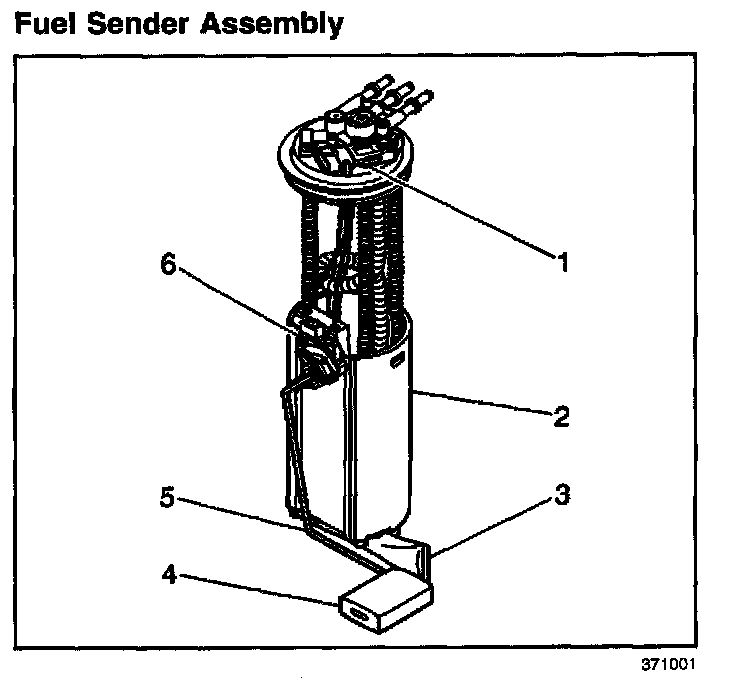

Fuel Sender Assembly:
The fuel sender assembly consists of the following major components:
^ The fuel level sensor (6)
^ The fuel tank pressure sensor (1)
^ The fuel pump module (2)
^ The fuel strainer (3)
The fuel sender assembly consists of the following major components:
^ The fuel level sensor (6)
^ The fuel tank pressure sensor (1)
^ The fuel pump module (2)
^ The fuel strainer (3)
