Power Brake Booster Outlet Hose Replacement

Power Brake Booster Outlet Hose Replacement
Removal Procedure





Important: Note the position of all the tie-straps, power steering hoses and the hose insulators for proper reinstallation.

1. Remove the power brake booster outlet hose tie-straps.
2. Place a drain pan under the vehicle.
3. Disconnect the power steering cooler hose from the power steering gear.

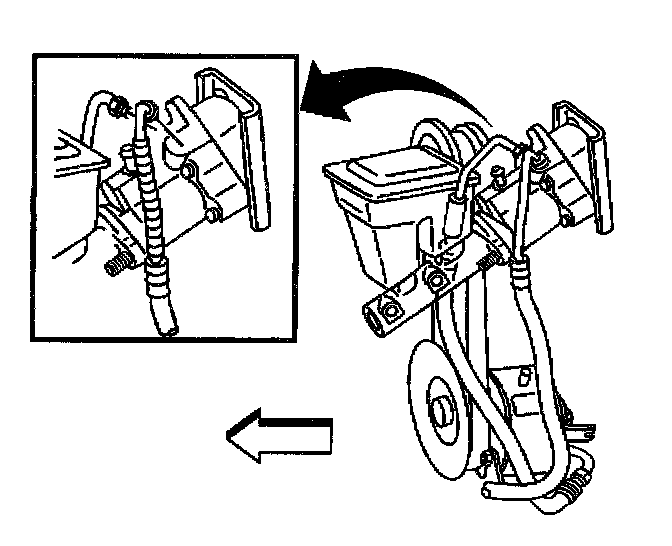

4. Disconnect the hydraulic brake booster outlet hose from the steering gear.
5. Disconnect the hydraulic brake booster outlet hose from the hydraulic brake booster.





6. Remove the hydraulic brake booster outlet hose from the vehicle.

Installation Procedure





Notice: Do not start the engine with any power steering hose disconnected, or damage to the components could occur.

1. Install the hydraulic brake booster outlet hose to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Connect the hydraulic brake booster outlet hose to the hydraulic brake booster.
- Tighten the hydraulic brake booster outlet hose to the hydraulic brake booster to 27 Nm (20 ft. lbs.).

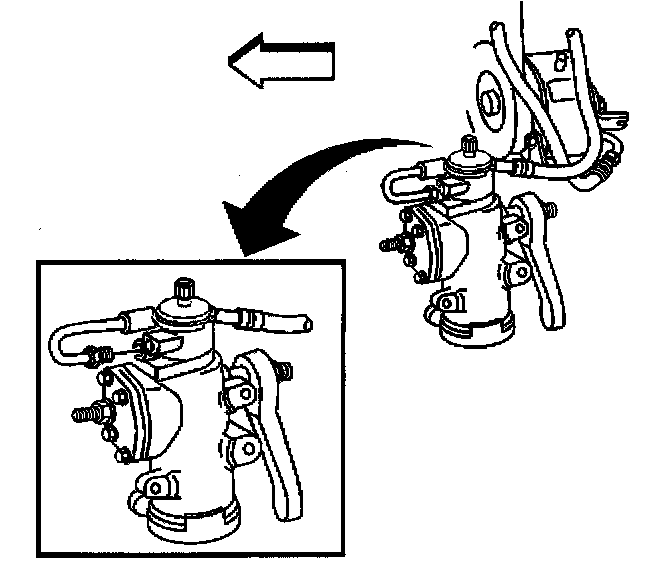

3. Connect the hydraulic brake booster outlet hose to the power steering gear.
Tighten
- Tighten the hydraulic brake booster outlet hose to the power steering gear to 27 Nm (20 ft. lbs.).
4. Remove the drain pan.
5. Install the hydraulic brake booster outlet hose tie straps.
6. Bleed the system. Refer to Bleeding the Power Steering System.
