Home
>>
Chevy Truck
>>
2001
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Courtesy Lamp Wiring - LH
Courtesy Lamp Wiring - LH

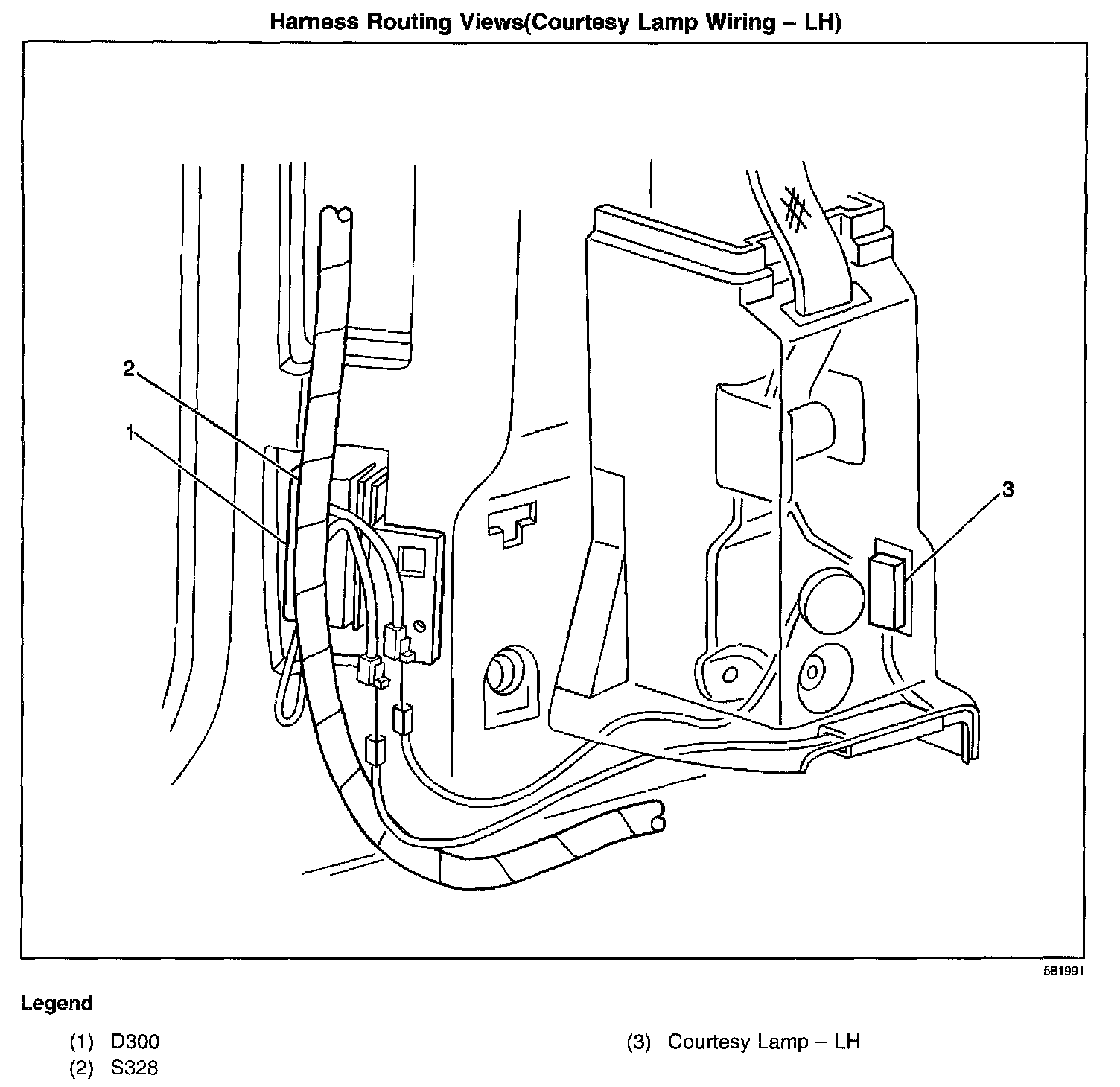

Harness Routing Views (Courtesy Lamp Wiring-LH):
