Turn/Hazard Switch and Flasher Module

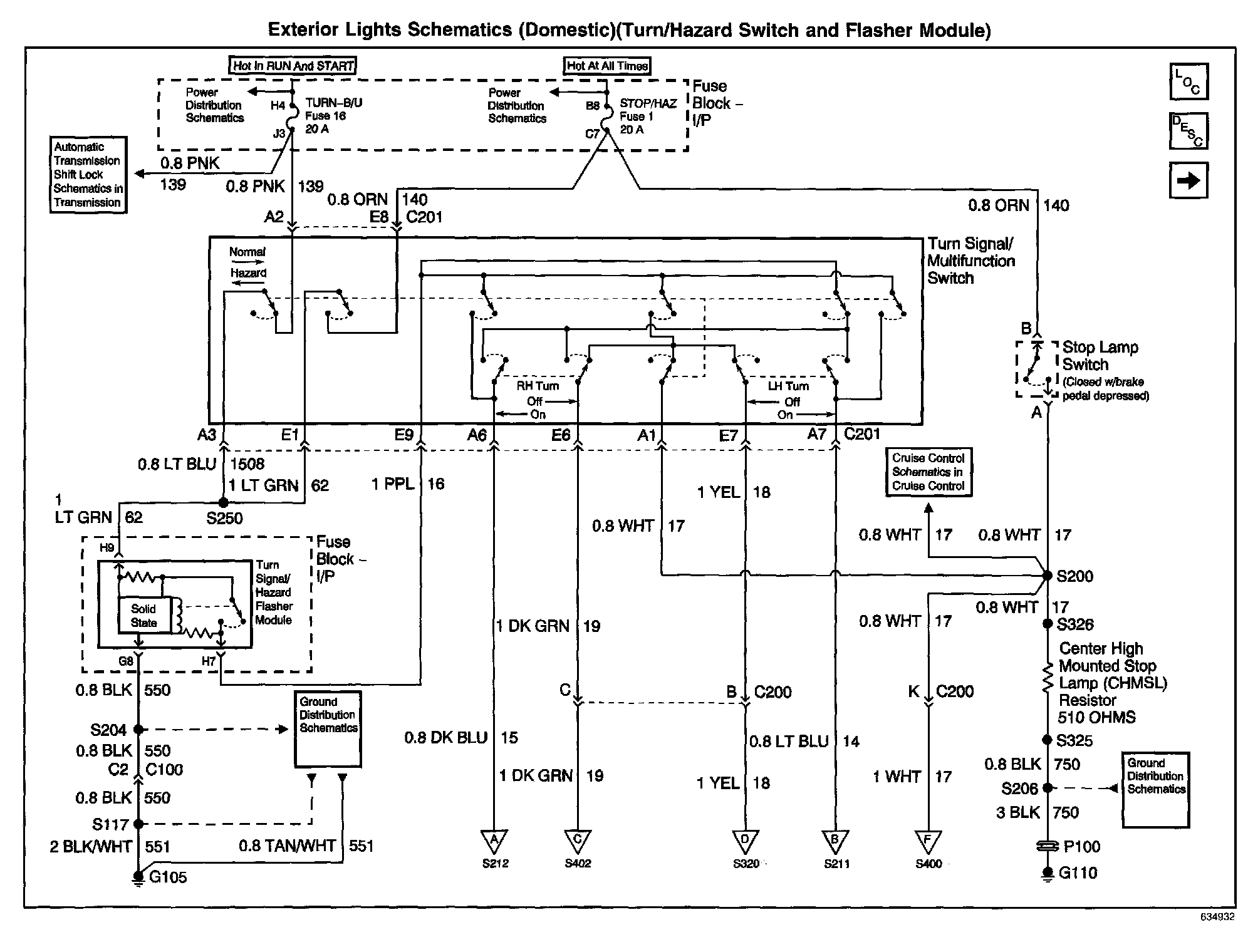

Exterior Lights Schematics: Domestic (Turn/Hazard Switch and Flasher Module):
