Chevy Truck
>>
2001
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Diagrams
>>
Connector Views
>>
Right Connector
Right Connector

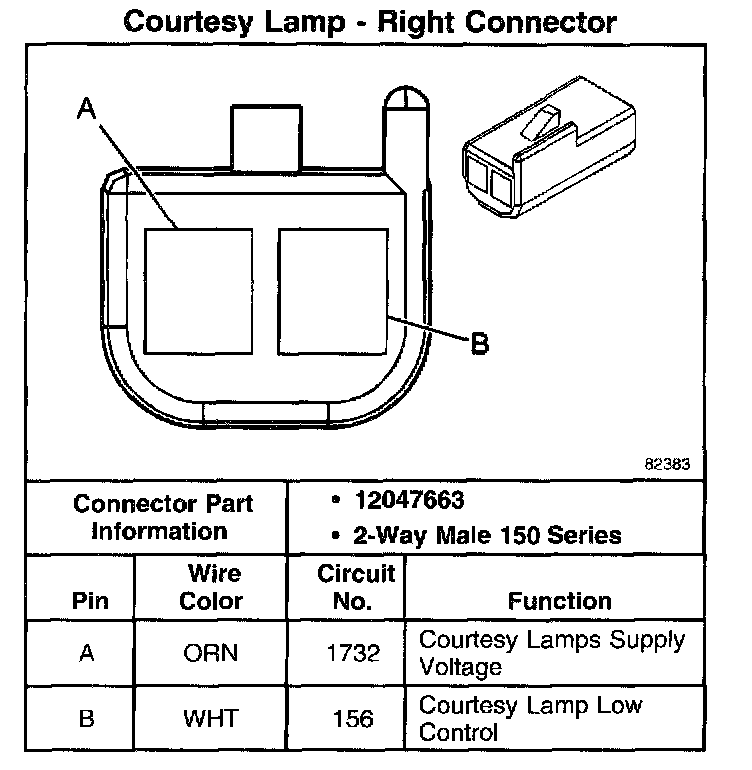

Courtesy Lamp - Right Connector:
