Vacuum Reservoir HVAC: Service and Repair

VACUUM TANK REPLACEMENT

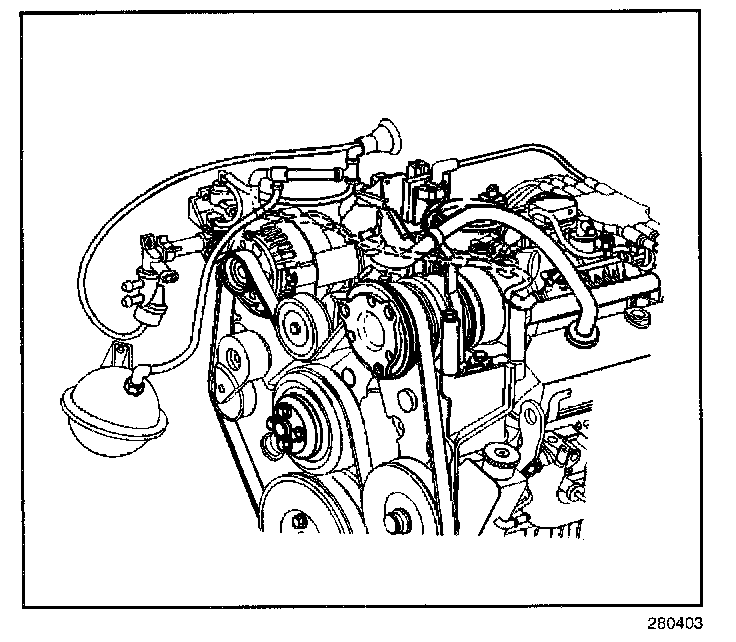

REMOVAL PROCEDURE




1. Remove the air cleaner.
2. Remove the upper fan shroud.
3. Remove the vacuum hose(s).

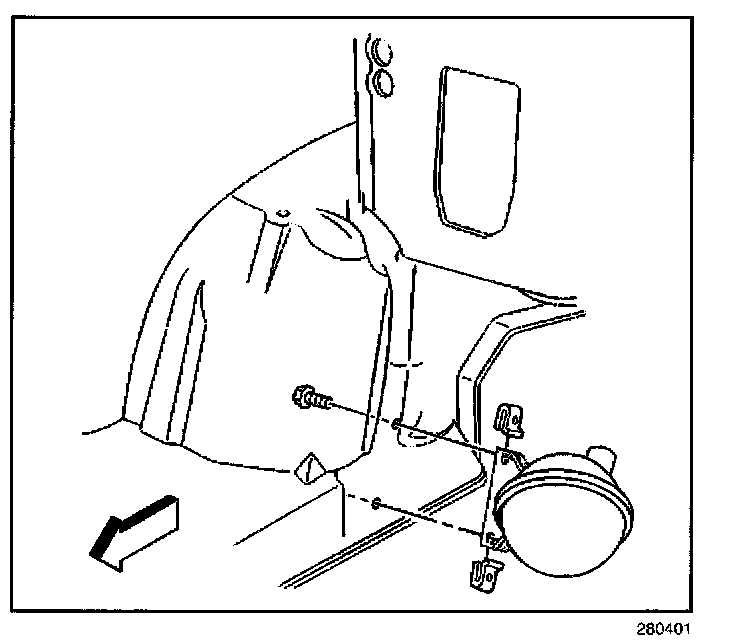

4. Remove the screws from the vacuum tank.
5. Remove the vacuum tank.

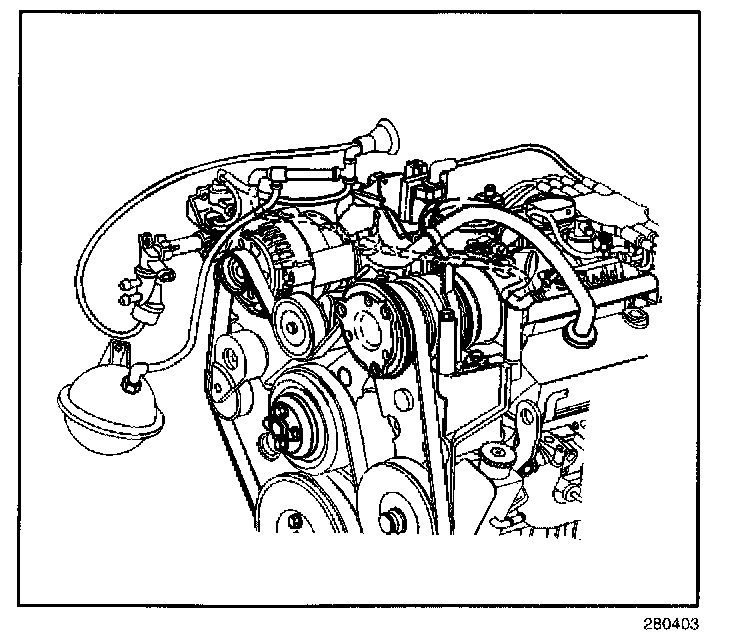

INSTALLATION PROCEDURE




1. Install the vacuum tank.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws to the vacuum tank.

Tighten
Tighten the vacuum tank screws to 3 N.m (26 lb in).




3. Install the vacuum hose(s).
4. Install the upper fan shroud.
5. Install the air cleaner.
