Chevy Truck
>>
2001
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
HVAC Compressor Controls
HVAC Compressor Controls

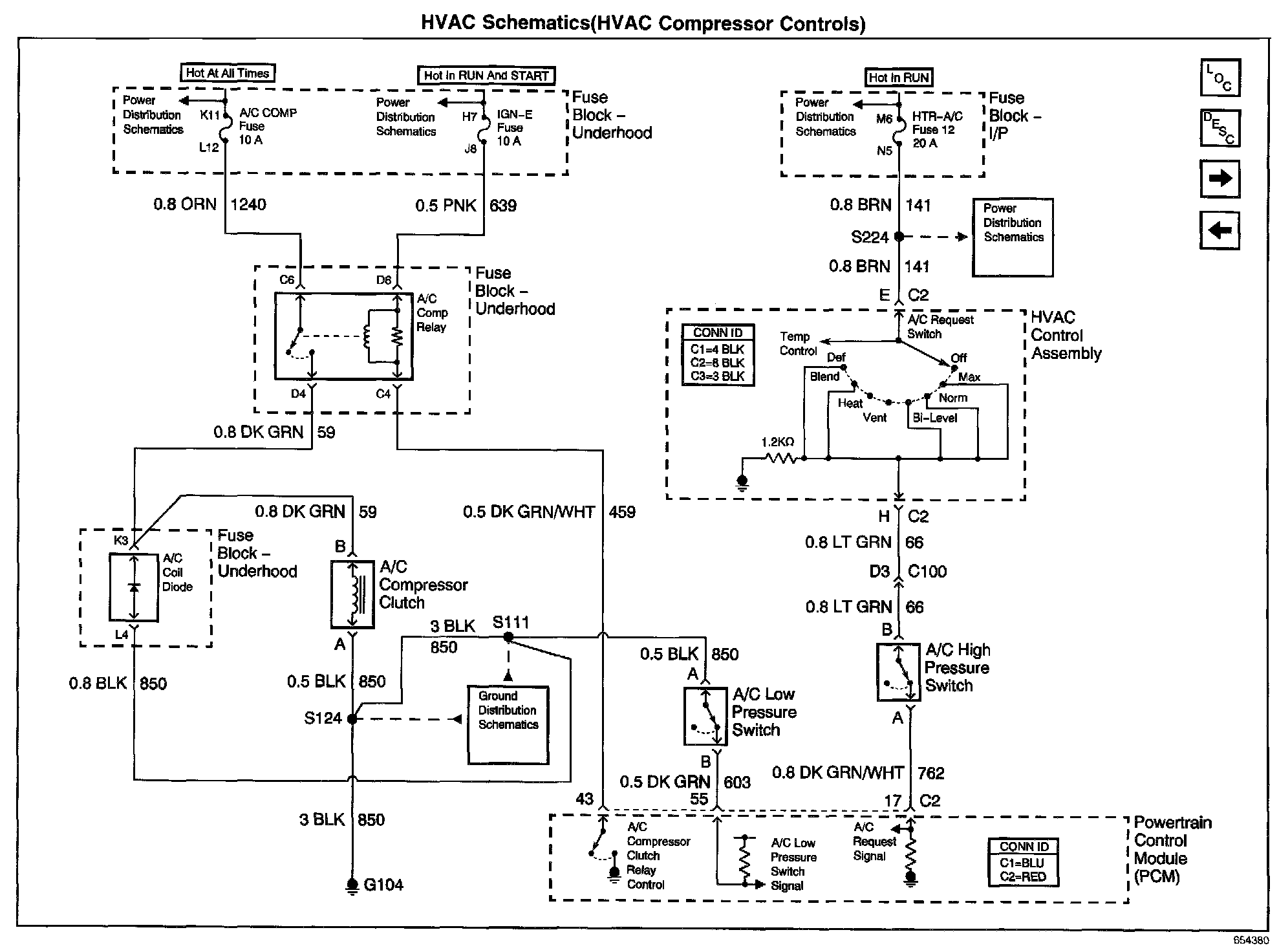

HVAC Schematics: HVAC Compressor Controls:
