IP AIR OUTLET VENT REPLACEMENT

REMOVAL PROCEDURE




1. Remove the right side knee bolster. Refer to Knee Bolster Replacement - Right.

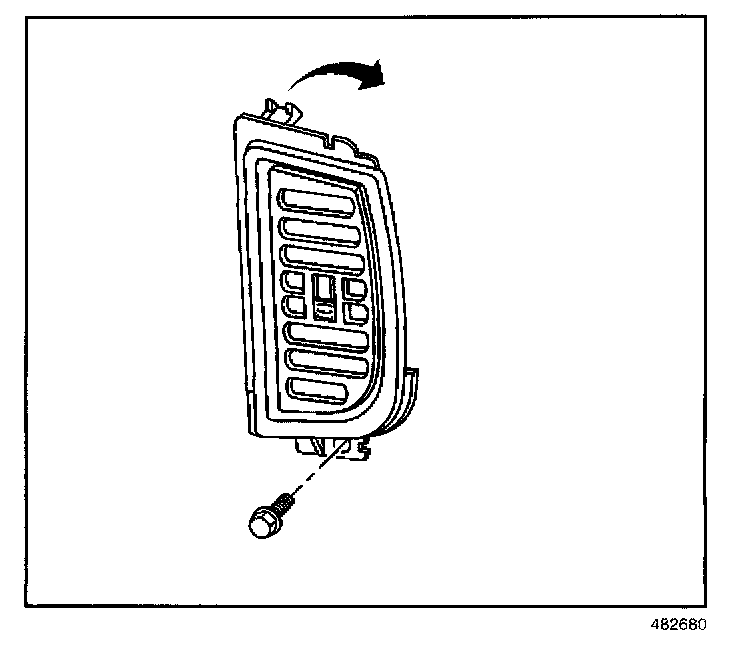

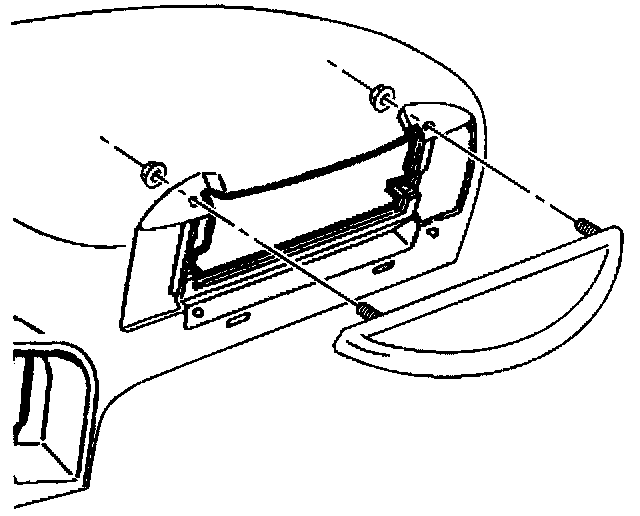

2. Remove the screw that retains the air outlet vent to the instrument panel.




3. Lift upward on the instrument panel assist handle
4. Remove the air outlet vent from the instrument panel.

INSTALLATION PROCEDURE




1. Lift upward on the instrument panel assist handle.




2. Install the air outlet vent to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the screw that retains the air outlet vent to the instrument panel.

Tighten
Tighten the screw that retains the air outlet vent to the instrument pane to 2 N.m (18 lb in).

4. Install the right side knee bolster. Refer to Knee Bolster Replacement Right.
