84. Engine Flywheel Installation

Engine Flywheel Installation





1. Install the engine flywheel to the crankshaft.
2. Align the locator hole to the pin.





Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the engine flywheel bolts.

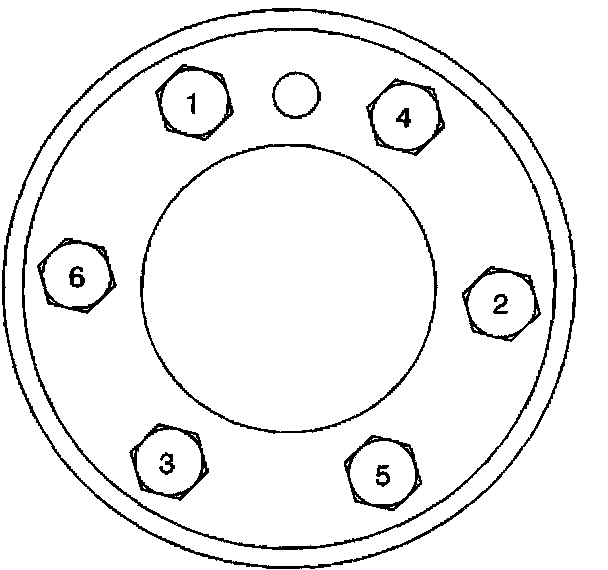

Tighten the engine flywheel bolts in sequence (1-6) to 100 Nm (74 lb ft).
