Chevy Truck
>>
2001
>>
Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
LR Door Connector
LR Door Connector

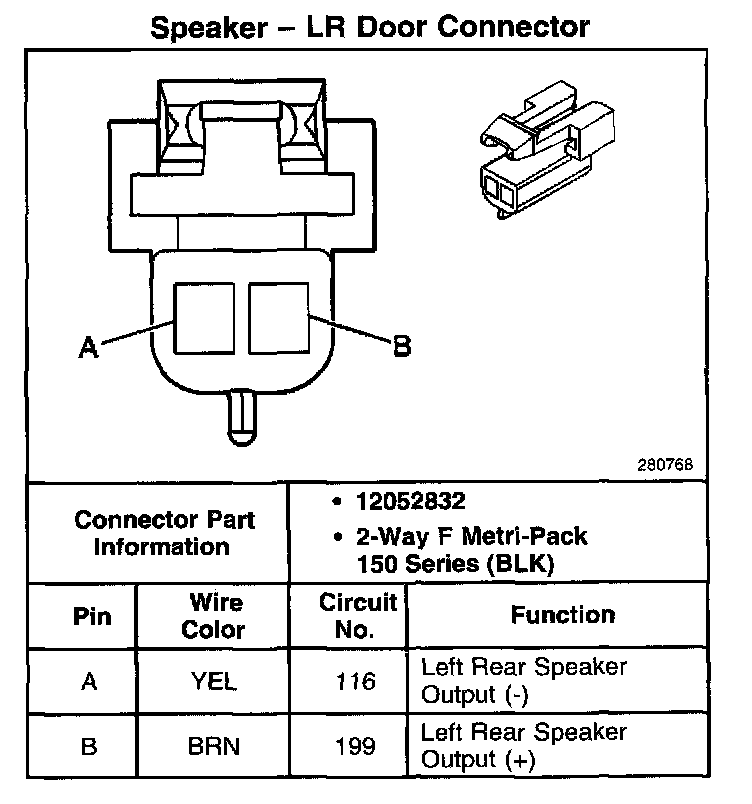

Speaker - LR Door Connector:
