Radio, Stereo, and Compact Disc
>>
Speaker
>>
LF Door Connector
LF Door Connector

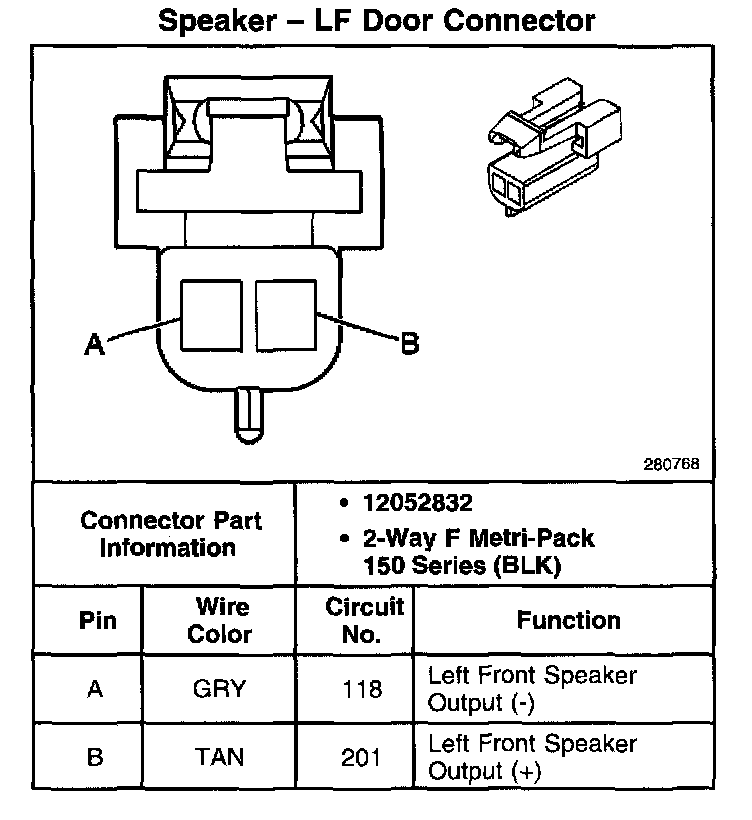

Speaker - LF Door Connector:
