Power Door Lock Actuator
>>
Side Door Contact Plate Connector
Side Door Contact Plate Connector

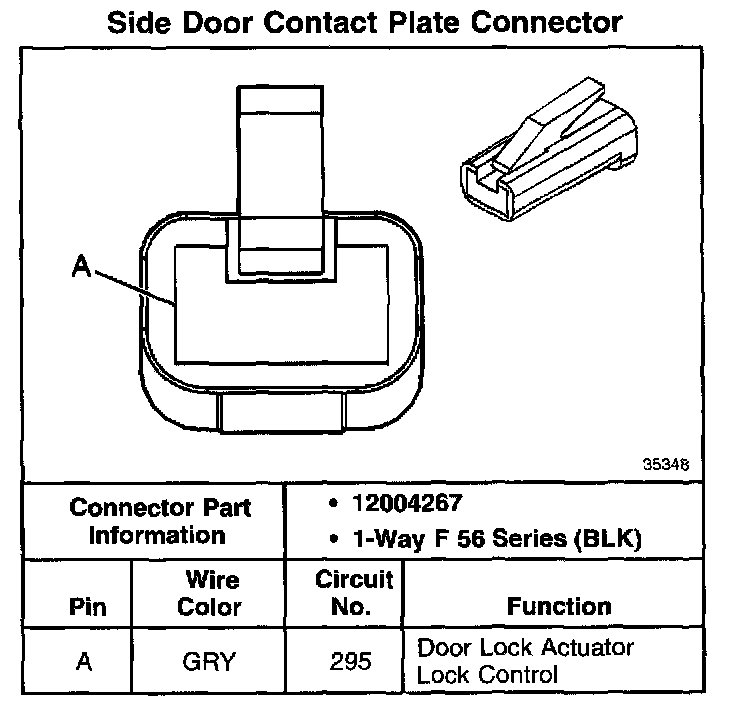

Side Door Contact Plate Connector:

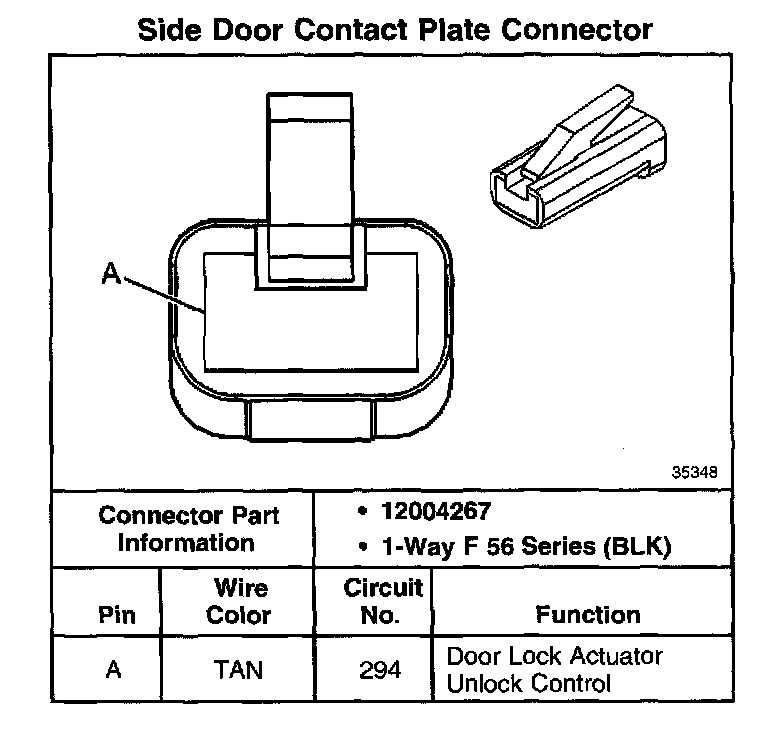

Side Door Contact Plate Connector:
