Auxiliary Power Outlet
>>

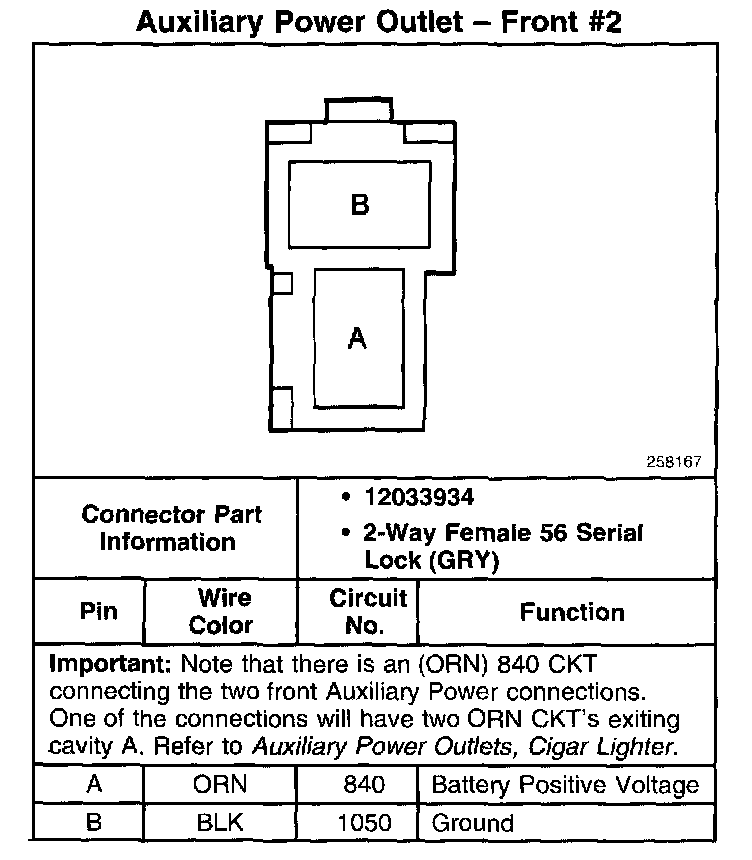

Auxiliary Power Outlet - Front #2
Auxiliary Power Outlet - Front #2
Auxillary Power Outlet - Front #2:
