Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

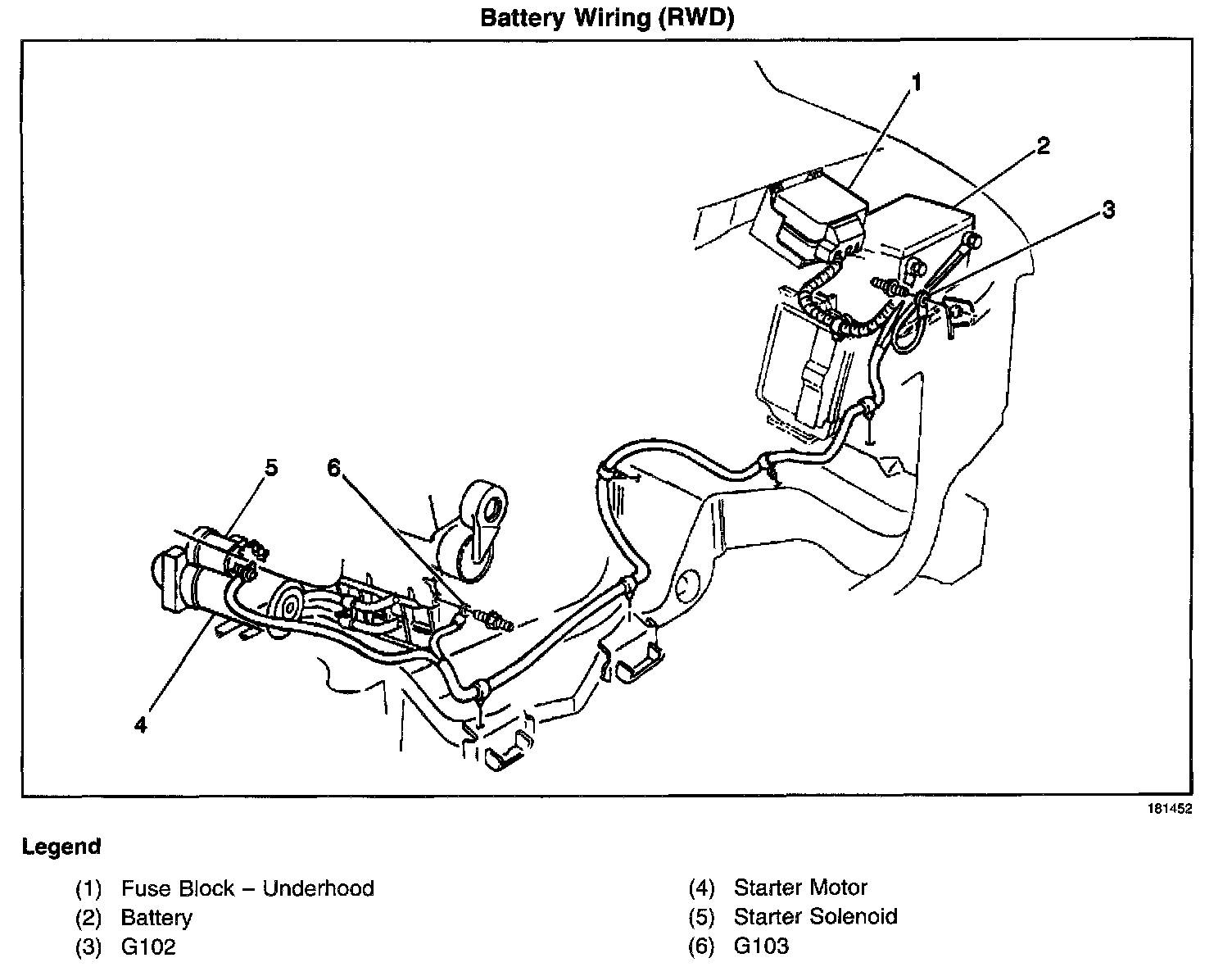

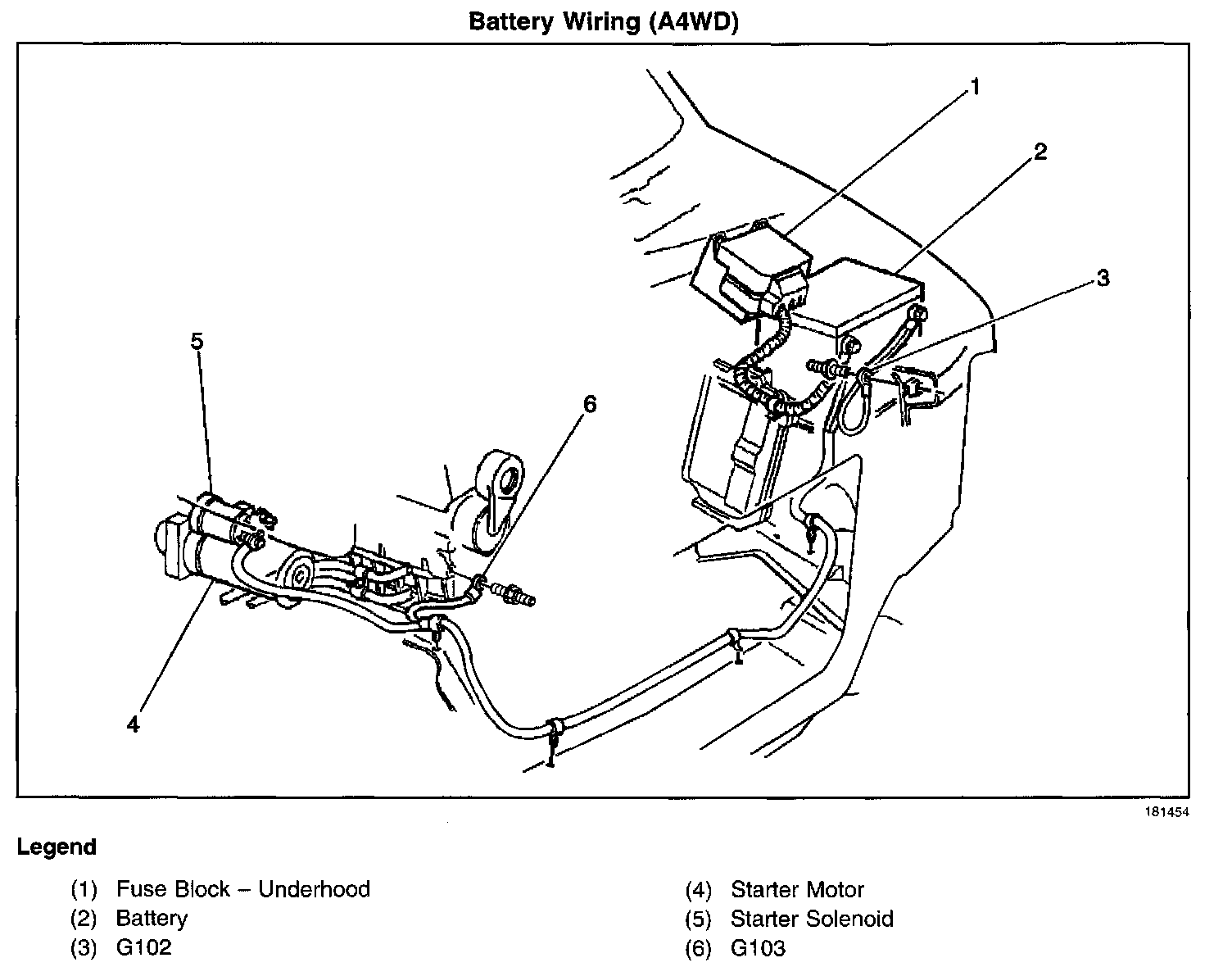

Battery
Battery
Fuse Block - Underhood:
Fuse Block - Underhood:
Locations View:
Behind the left headlamp
