Garnish Molding Replacement - Upper Roller Track

Garnish Molding Replacement - Upper Roller Track

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover

Removal Procedure

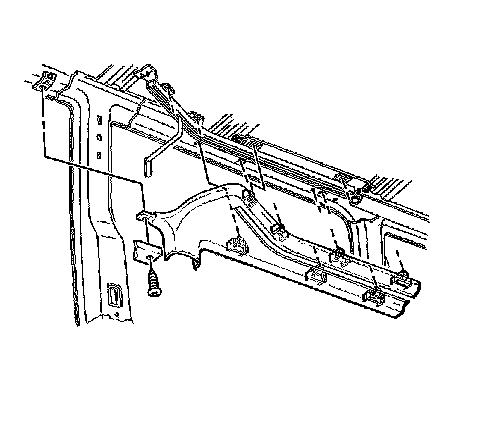

1. Remove the three retaining screws from the upper garnish molding.




2. Use J 38778 in order to release the molding retainers.

Installation Procedure




1. Align the fasteners with the slots in the body.
2. Press the panel firmly into position, ensuring that all fasteners are fully seated.

Notice: Refer to Fastener Notice in Cautions and Notices

3. Install the three retaining screws to the upper garnish molding.

Tighten the three retaining screws to the upper garnish molding to 2 Nm (18 lb.in.).
