Passenger Assist Handle: Service and Repair

Instrument Panel Assist Handle Replacement

Removal Procedure

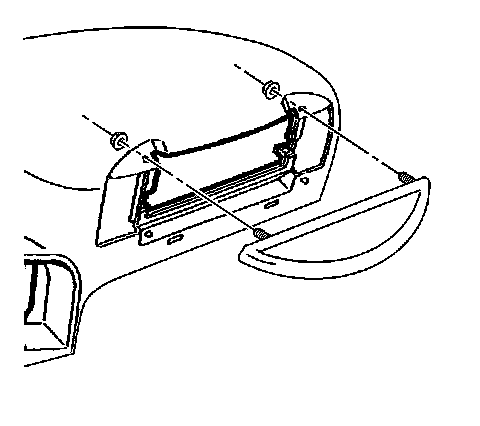

1. Remove the inflatable restraint IP module. Refer to Instrument Panel Inflatable Restraint Module Replacement in SIR.




2. Remove the nuts from the assist handle.
3. Remove the assist handle.

Installation Procedure

1. Install the assist handle to the instrument panel.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the assist handle nuts.

Tighten the assist handle nuts to 8 Nm (71 lb.ft.).

3. Install the inflatable restraint IP module. Refer toInstrument Panel Inflatable Restraint Module Replacement in SIR.
