Rear Floor Mat/Carpet Replacement (B38)

Rear Floor Mat/Carpet Replacement (B38)

Removal Procedure

1. Remove the seats and the risers. Refer to Rear Bench Seat Replacement (Rear Bench Seat Replacement) in Seats.
2. Remove the front and the rear door trim plates. Refer to Carpet Retainer Replacement (Carpet Retainer Replacement).
3. Remove the body side front lower trim panel, if required. Refer to Body Side Front Lower Trim Panel Replacement (Body Side Front Lower Trim Panel Replacement).
4. Remove the bolt that retains each cargo net anchor to the floor of the vehicle, if equipped.





Important: The carpet bezels are retained by sonic weld and are not to be removed.

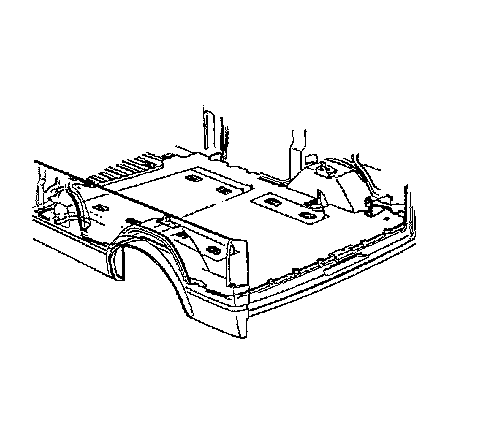

5. Remove the carpet from the vehicle.

Installation Procedure





Caution: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

1. Install the carpet into the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolt that retains each cargo net anchor to the floor of the vehicle, if equipped.

Tighten the bolt to 2 Nm (18 lb.in.).

3. Install the body side front lower trim panel, if removed. Refer to Body Side Front Lower Trim Panel Replacement (Body Side Front Lower Trim Panel Replacement).
4. Install the front and the rear door trim plates. Refer to Carpet Retainer Replacement (Carpet Retainer Replacement).
5. Install the seats and the risers. Refer to Bucket Seat Replacement (Bucket Seat Replacement) in Seats.
