Garage Door Opener Replacement

REMOVAL PROCEDURE

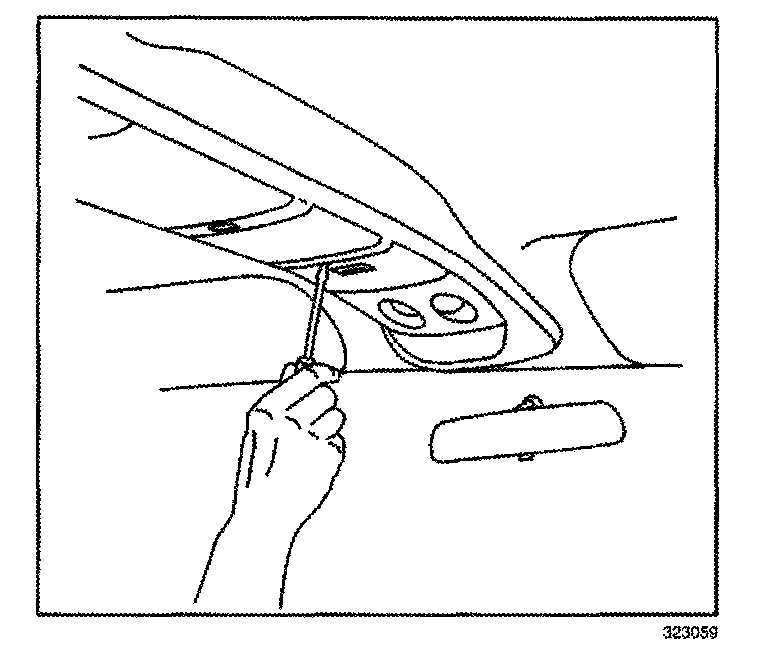

1. Release the barbed tab at the center of the access panel.

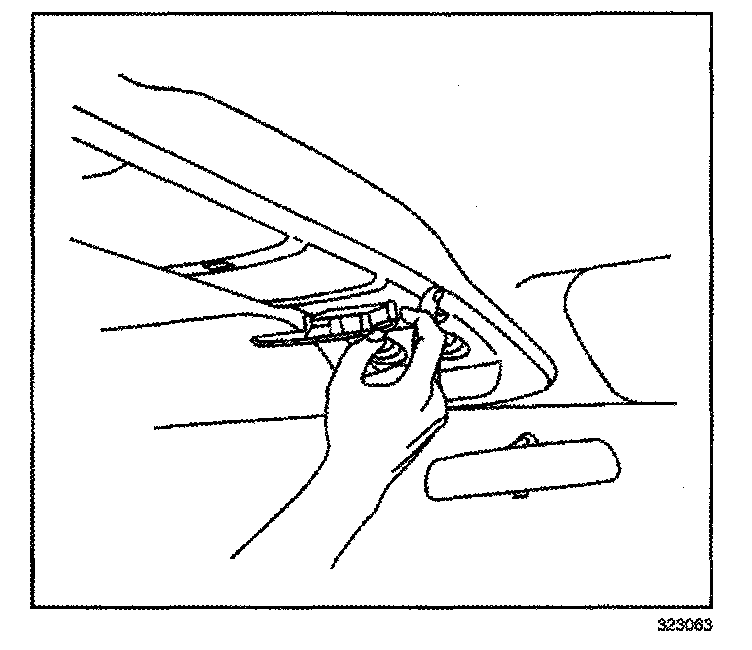

2 Swing the panel down and forward in order to access the module
3 Disconnect the electrical connector from the module and switch assembly

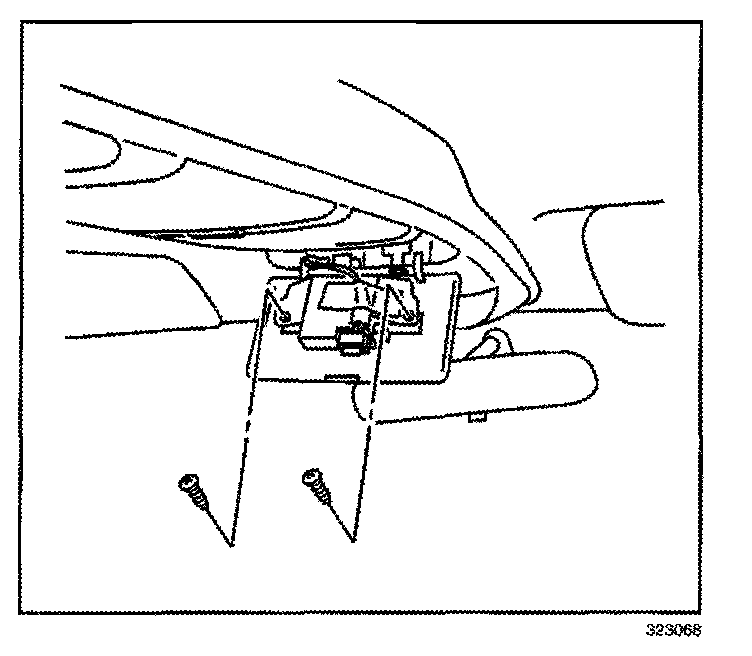

4 Remove the screws that retain the module and switch assembly to the console
5. Remove the module and switch assembly from the console.

INSTALLATION PROCEDURE




1. Align the LED indicator with the hole in the access panel when setting the module into place.
2. Install the module and switch assembly to the console.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the screws that retain the module and switch assembly to the console.

Tighten
Tighten the screws that retain the module and switch assembly to the console to 4 N.m (18 lb in).




4. Connect the electrical connector to the module and switch assembly.
5. Swing the access panel up and rearward in order to close the access panel.




6. Snap the barbed tab into place in the console.
