Driver/Vehicle Information Display: Service and Repair

DRIVER INFORMATION CENTER MODULE REPLACEMENT

REMOVAL PROCEDURE

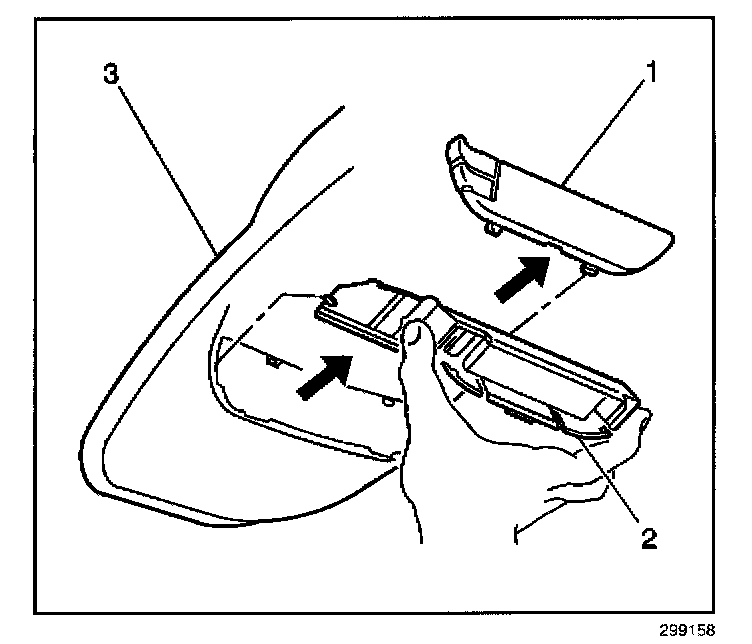

1. Remove the overhead console (3). Refer to Console Replacement - Overhead.
2. Remove the display lens (1) and the switch tape.
3. Remove the temperature/compass electronic display module (2).

INSTALLATION PROCEDURE




1. Install the temperature/compass electronic display module (2).
2. Install the display lens (1) and the switch tape.
3. Install the overhead console (3). Refer to Console Replacement - Overhead.
4. Recalibrate the compass. Refer to Electronic Compass Calibration. Service and Repair
