Shift Cable: Adjustments

Shift Cable Adjustment

Adjustment Procedure





1. Ensure that the shift cable is not restricted.
2. Ensure that the steering column shift lever is in the NEUTRAL position.
3. Raise the vehicle. Refer to Vehicle Lifting.
4. Ensure that the transmission is in the mechanical neutral position.
5. Disconnect the shift cable from the transmission control lever ball stud.

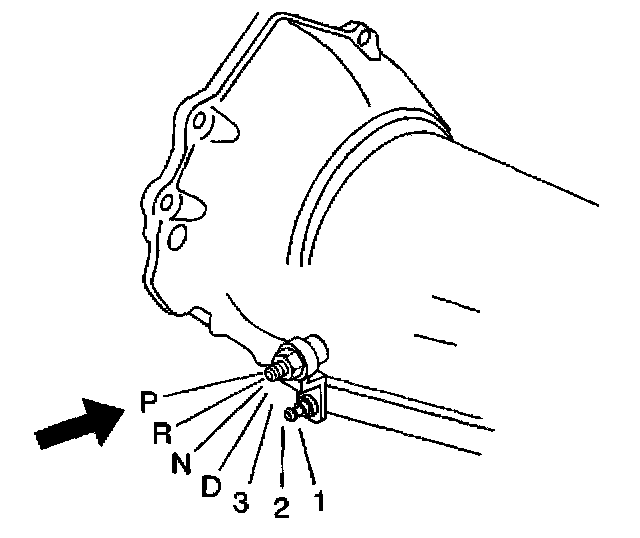

6. Rotate the transmission control lever clockwise until it reaches the full clockwise stop position.
7. Move the shift lever counterclockwise two detents.

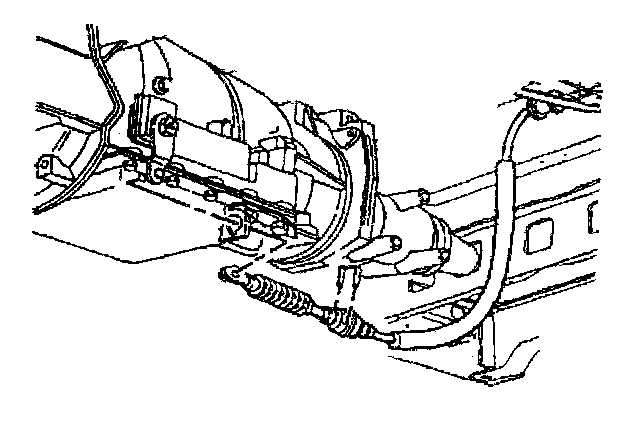

8. Release the locking tab that secures the shift cable to the transmission bracket.
9. Ensure that the tab remains positioned OUT.
10. Pull the cable end completely forward and release it. (When the cable is pulled completely forward and released, the adjustment spring will position the cable to its most rearward position. )
11. Connect the end of the shift cable to the transmission shift lever stud ball.
12. Press the locking tab IN in order to secure the shift cable to the transmission bracket.
13. Lower the vehicle.
14. Check for proper operation of the shift cable.
