License Plate Lamp: Service and Repair

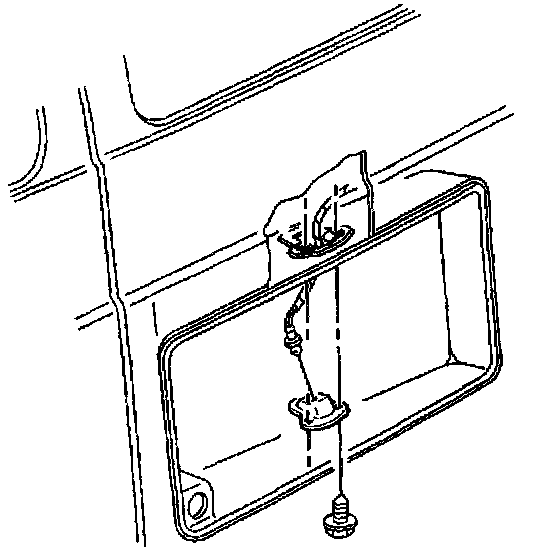

LICENSE LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Turn OFF the headlamp switch.
2. Remove the screws from the license lamp.
3. Remove the bulb.

INSTALLATION PROCEDURE




1. Install the bulb.
2. Install the license lamp.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the license lamp screws.

Tighten
Tighten the license lamp screws to 2 N.m (18 lb in).
