Air Outlet Duct Replacement - Right Defogger

REMOVAL PROCEDURE

IMPORTANT: Do not remove the instrument panel.




1. Roll the instrument panel down. Refer to IP Carrier Replacement in Instrument Panel, Gages and Console.

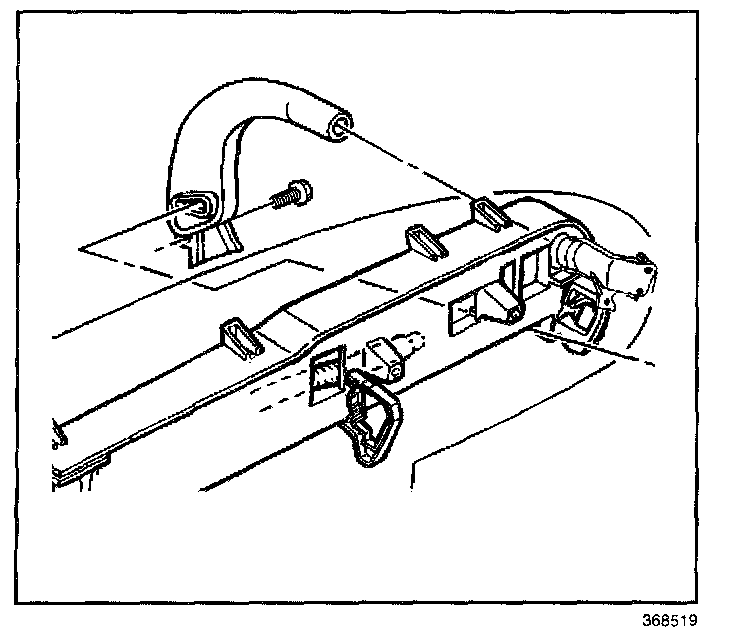

2. Remove the screws that retain the duct.
3. Remove the duct from the instrument panel.

INSTALLATION PROCEDURE




1. Install the duct to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws in order to retain the duct.

Tighten
Tighten the duct retaining screws to 2 N.m (18 lb in).

3. Roll the instrument panel up. Refer to IP Carrier Replacement in Instrument Panel, Gages and Console.
