Air Outlet Duct Replacement - Left Defogger

REMOVAL PROCEDURE

IMPORTANT: Do not remove the instrument panel.




1. Roll the instrument panel down. Refer to IP Carrier Replacement in Instrument Panel, Gages and Console.

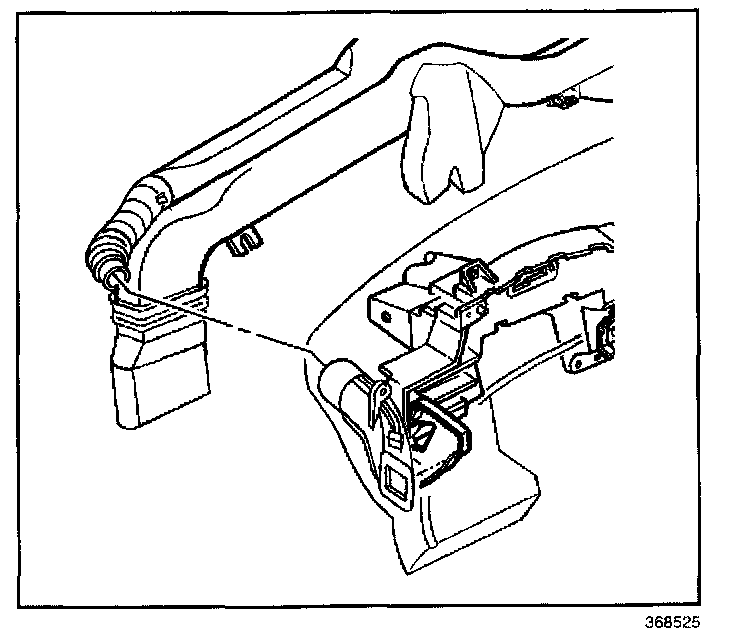

2. Remove the duct from the left side floor air outlet.
3. Remove the duct from the left body side window defogger outlet.
4. Remove the duct from the vehicle.

INSTALLATION PROCEDURE




1. Install the duct to the vehicle.
2. Install the duct to the left body side window defogger outlet.
3. Install the duct to the left side floor air outlet.
4. Roll the instrument panel up. Refer to IP Carrier Replacement in Instrument Panel, Gages and Console.
