Home
>>
Chevy Truck
>>
2000
>>
Tracker 4WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
A/T Speed Sensors and A/T Solenoids
A/T Speed Sensors and A/T Solenoids

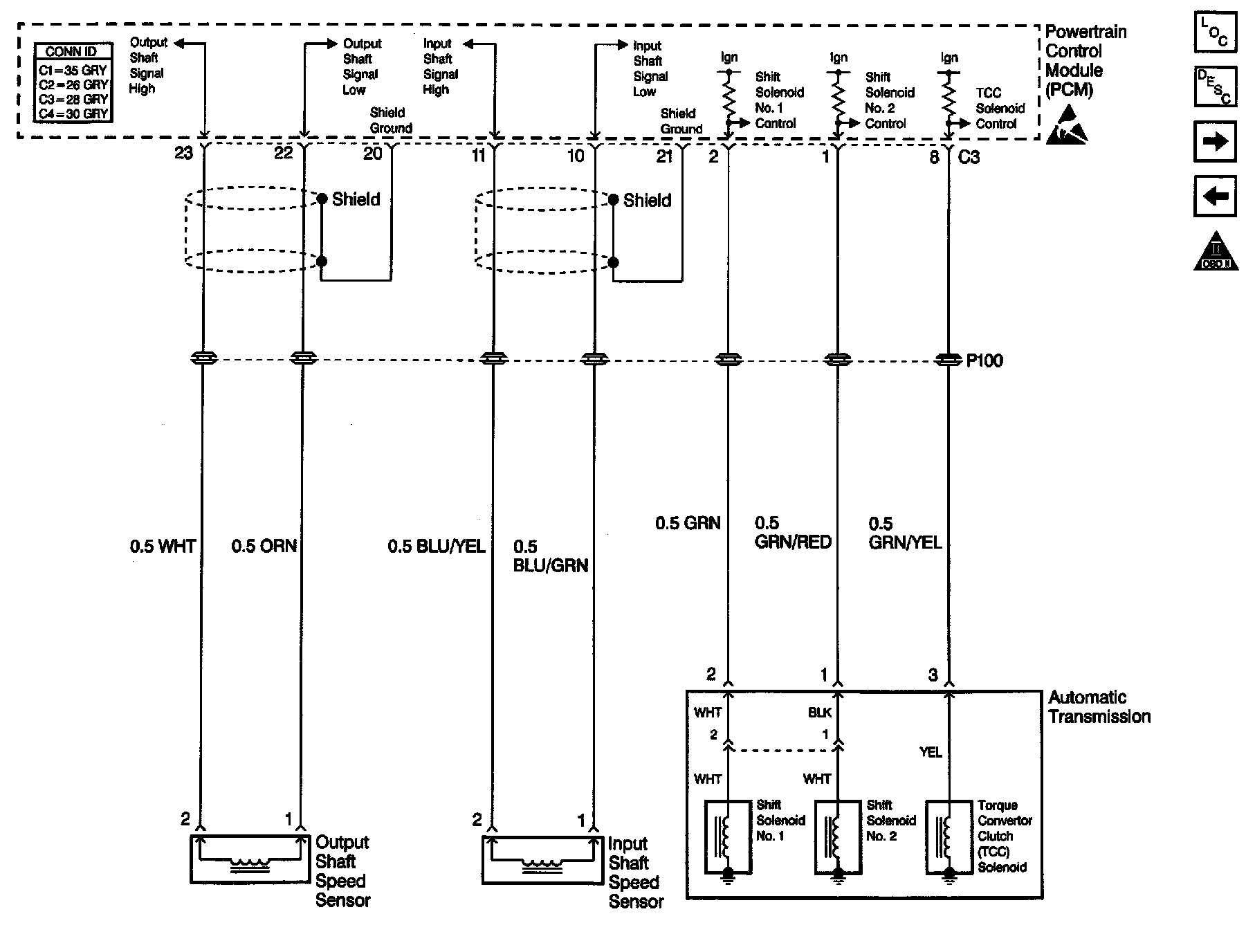

Engine Controls Schematics: A/T Speed Sensors and A/T Solenoids:
