Canister Vent Valve: Service and Repair

REMOVAL PROCEDURE

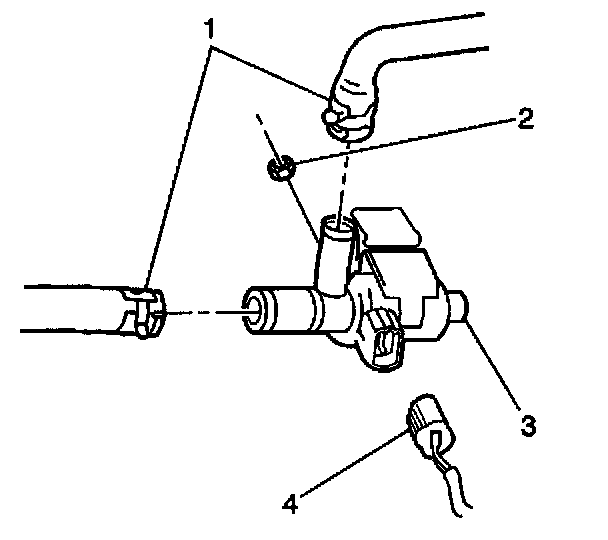

1. Disconnect the 2 vent hoses (1) from the evaporative emission ([1][2]EVAP) system.
2. Disconnect the electrical connector (4) from the EVAP canister vent valve.
3. Remove the nut (2) from the EVAP canister vent valve.
4. Remove the EVAP canister vent valve (3) from the vehicle.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the EVAP canister vent valve (3) to the bracket with the nut (2).

Tighten
Tighten the nut to 1.6 N.m (14 lb in).

2. Install both vacuum lines (1).
3. Connect the electrical connector (4) to the EVAP canister vent valve.
4. Connect the EVAP system vent hoses.
