Home
>>
Chevy Truck
>>
2000
>>
Tracker 4WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Relays
>>
Shift Lock
Shift Lock

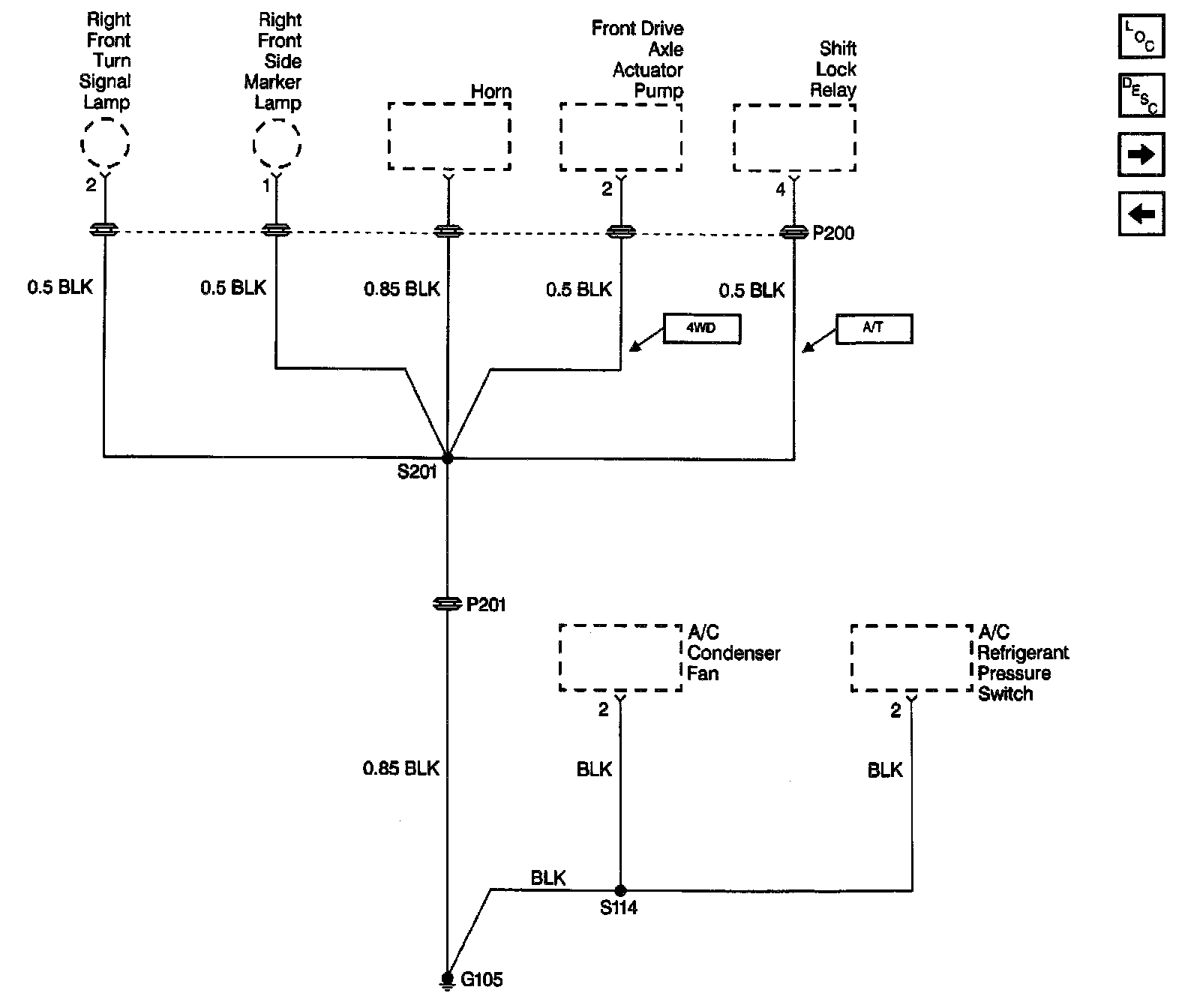

Ground Distribution Schematics: G105:
