Installation Procedure

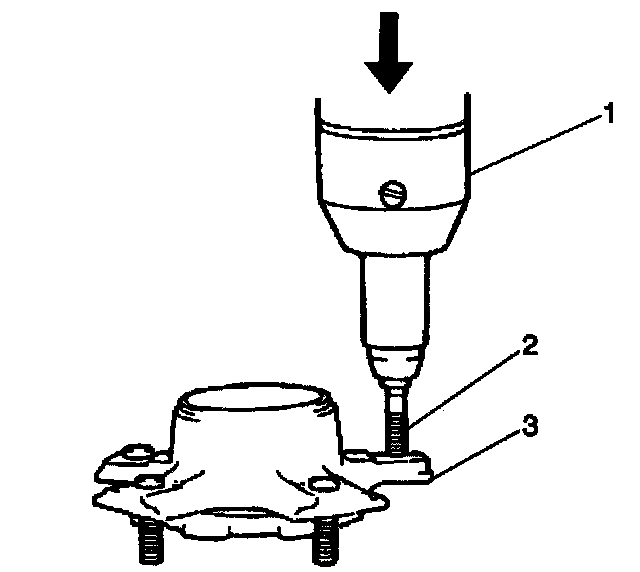

1. Align the serrations in the wheel bolts (2) with the serrations in the bolt holes. Use a hydraulic press (1) in order to install the 5 wheel bolts.
2. If the vehicle has ABS, install the wheel speed sensor ring. Refer to Wheel Speed Sensor Ring Replacement-Front in Antilock Brake System.
3. Install the hub, the bearings, and the seals. Refer to Wheel Hub, Bearing, and Seal Replacement.
4. Install the brake rotor. Refer to Brake Rotor Replacement in Disc Brakes.
5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
6. Lower the vehicle.
