Tracker 4WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Brake Warning Indicator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

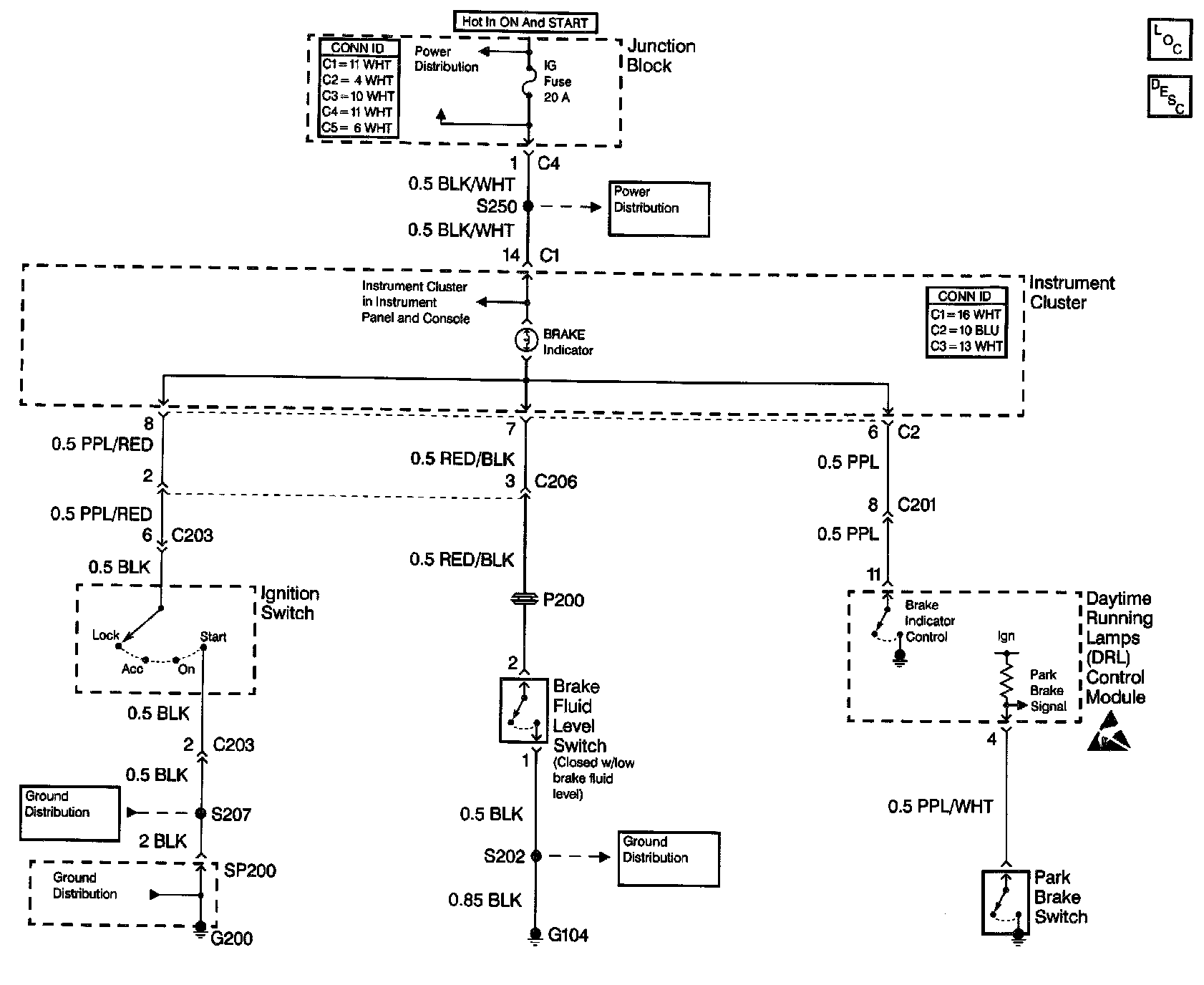

Brake Warning System Schematics:
