Chevy Truck
>>
2000
>>
S10/T10 P/U 4WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

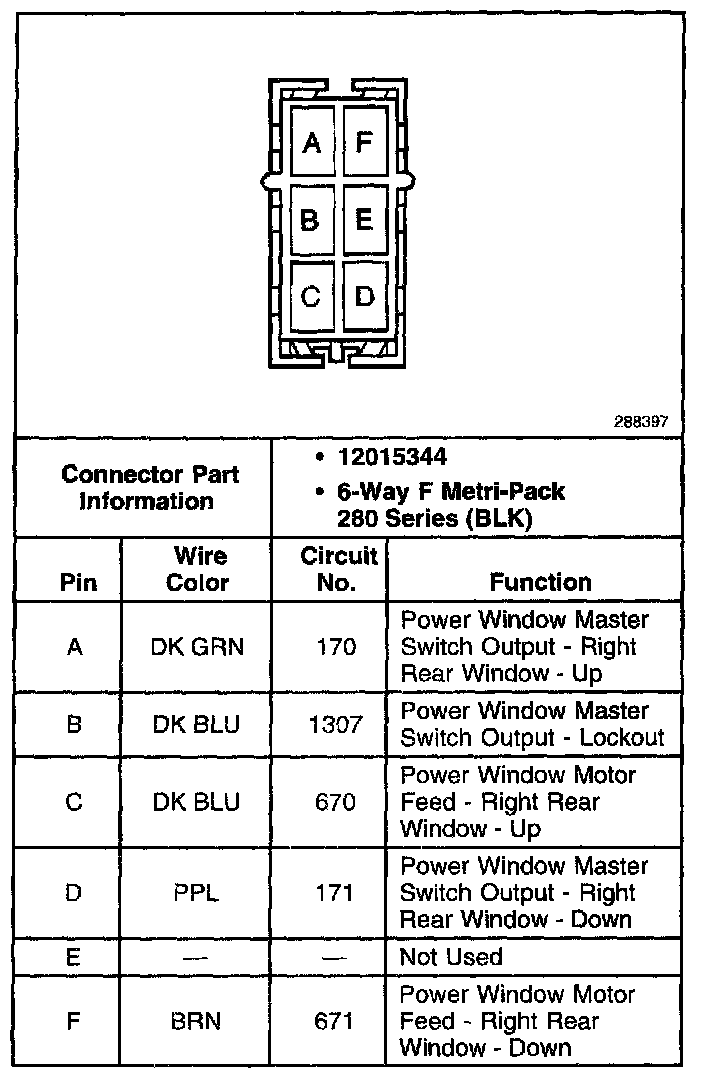

Side Window Switch RR Connector
Side Window Switch RR Connector
Side Window Switch RR Connector:
