NVG 233-NP1 (Two Speed Selectable)

^ Tools Required
- J29162 Rear Output Shaft Seal Installer.
Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the transfer case shield. Refer to Shield Replacement.
3. Remove the front propeller shaft. Refer to Propeller Shaft Replacement-Front.

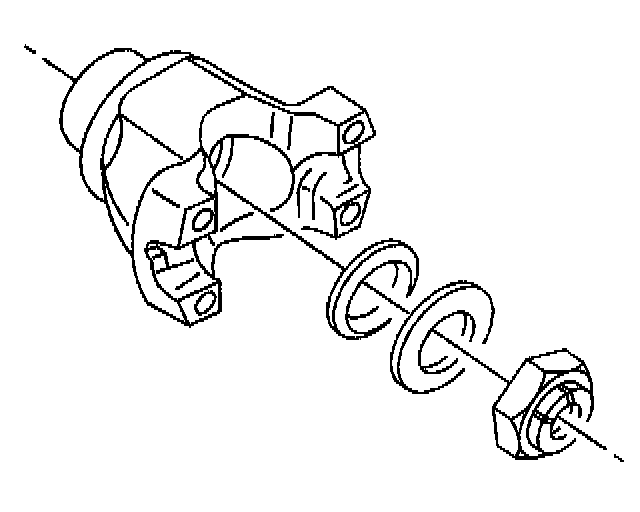

4. Remove the propeller shaft yoke.
5. Remove the seal.
^ Use a screwdriver in order to remove the seal.
^ Do not damage the sealing bore.

Installation Procedure

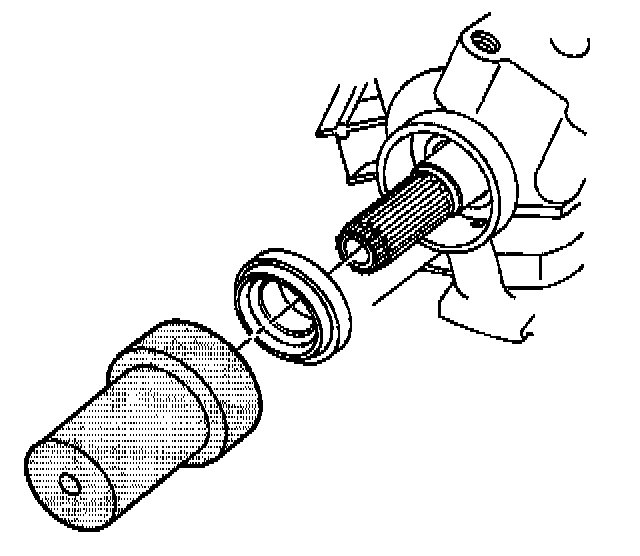

1. Install the seal using the J29162.





2. Install the propeller shaft yoke.

Notice: Refer to Fastener Notice in Service Precautions.

^ Tighten the propeller shaft yoke nuts to 149 Nm (110 ft. lbs.).
3. Install the propeller shaft. Refer to Propeller Shaft Replacement-Front In Propeller Shaft.
4. Check the transfer case oil level and add oil as necessary. Refer to Capacities-Approximate Fluid.
5. Install the transfer case shield. Refer to Shield Replacement.
6. Lower the vehicle.
