Upper Control Arm Bushings Replacement (4WD)

- Tools Required
- J 21474-01 Control Arm Bushing Service Set
- J 214 74-18 Nut
- J 21474-19 Bolt

Removal Procedure





1. Remove the upper control arm. Refer to Upper Control Arm Replacement (RWD) or Upper Control Arm Replacement (4WD).
2. Install the upper control arm in a vise.

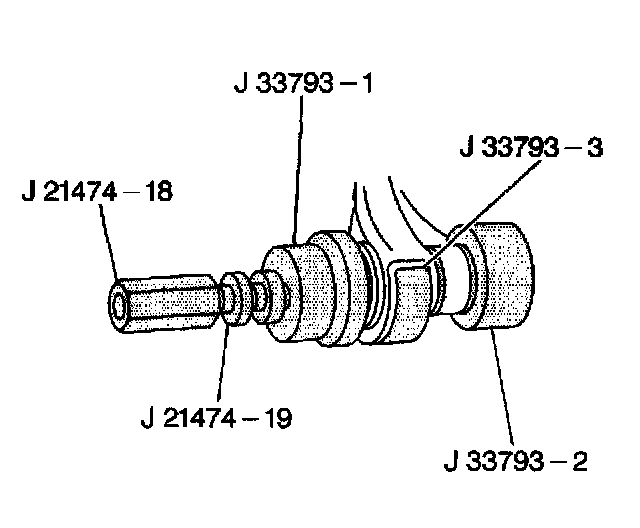

3. Remove the bushings. Use the tools shown.


Installation Procedure

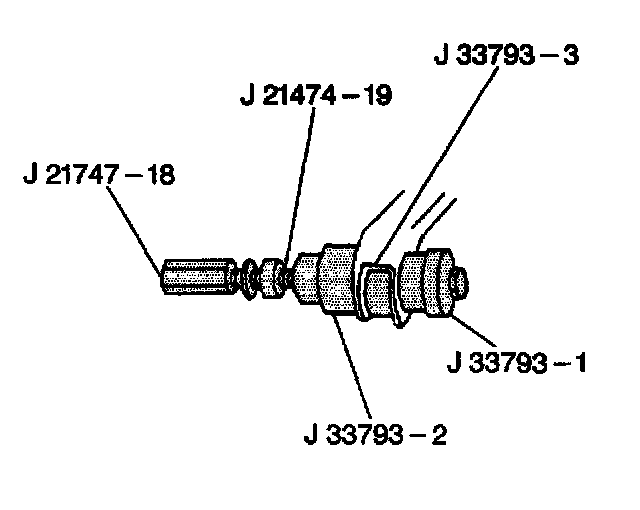

1. Install the bushings to the upper control arm. Use the tools shown.
2. Remove the upper control arm from the vise.
3. Install the upper control arm. Refer to Upper Control Arm Replacement (RWD) or Upper Control Arm Replacement (4WD).
