Instrument Panel, RH

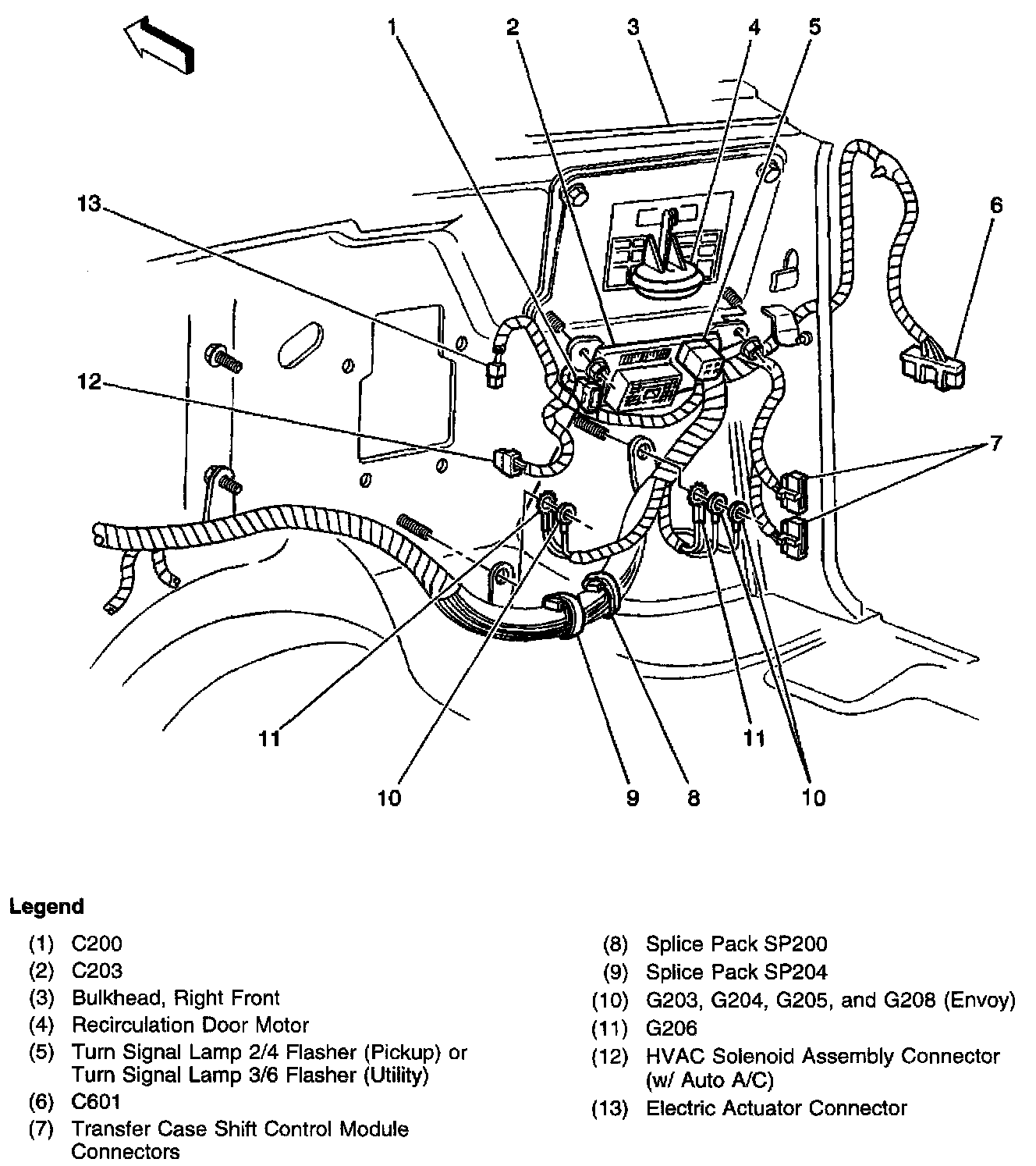

Harness Routing Views (Instrument Panel, RH):

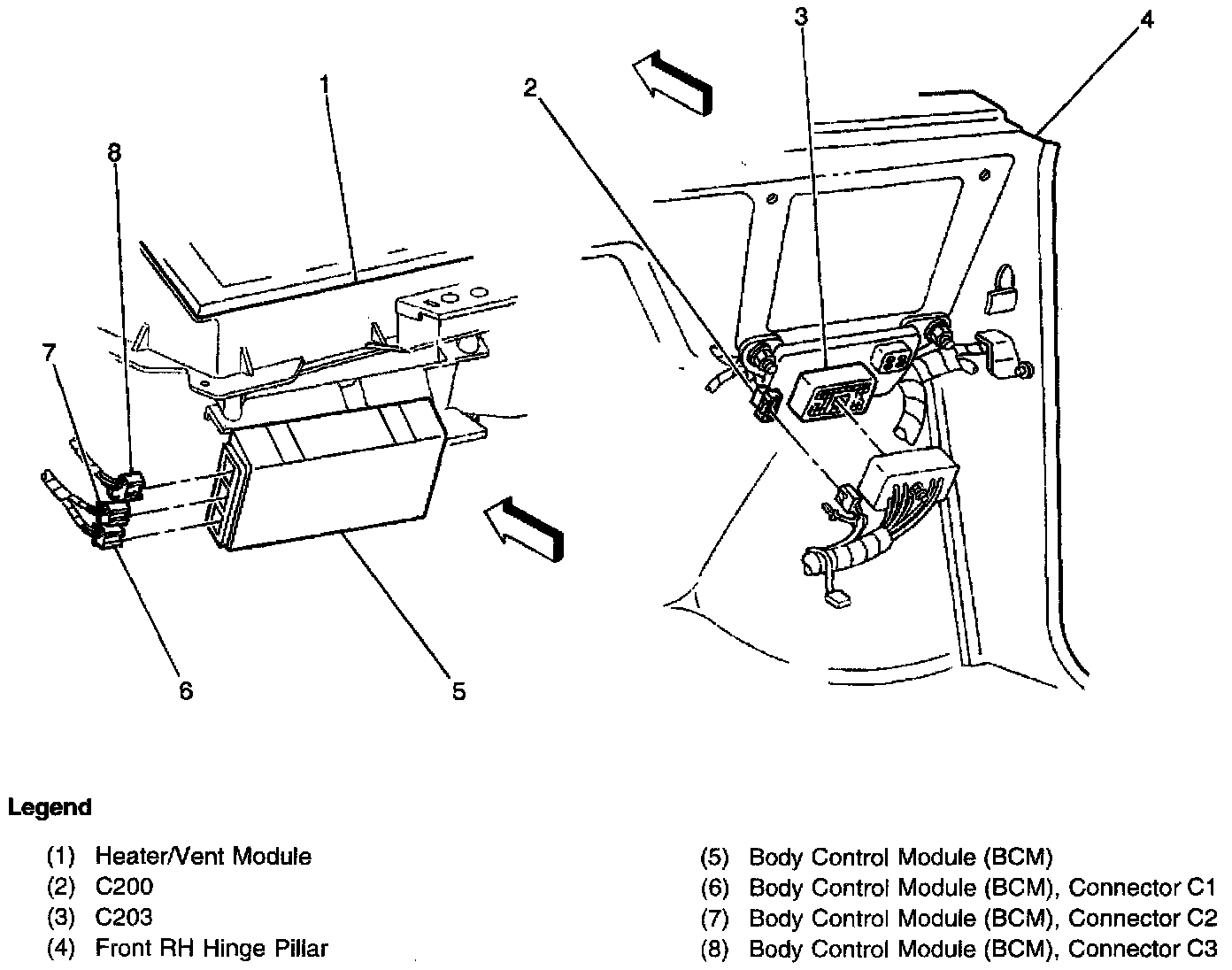

Harness Routing Views (Instrument Panel, RF):
