Home
>>
Chevy Truck
>>
2000
>>
S10/T10 P/U 4WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case
>>
NVG 236/246-NP8 (Two Speed Automatic)
>>

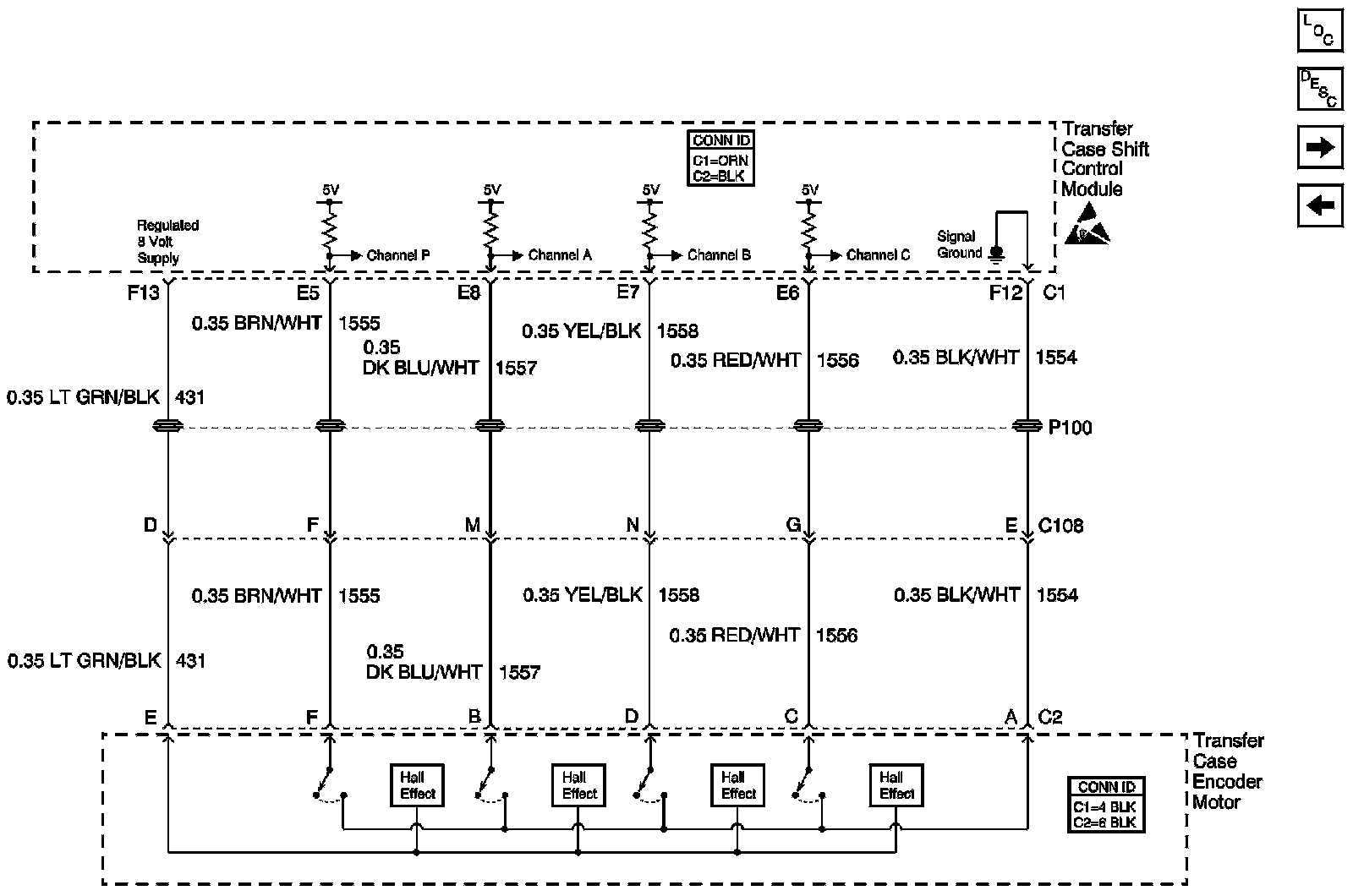

Transfer Module and Transfer Case
Transfer Module and Transfer Case
