Home
>>
Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

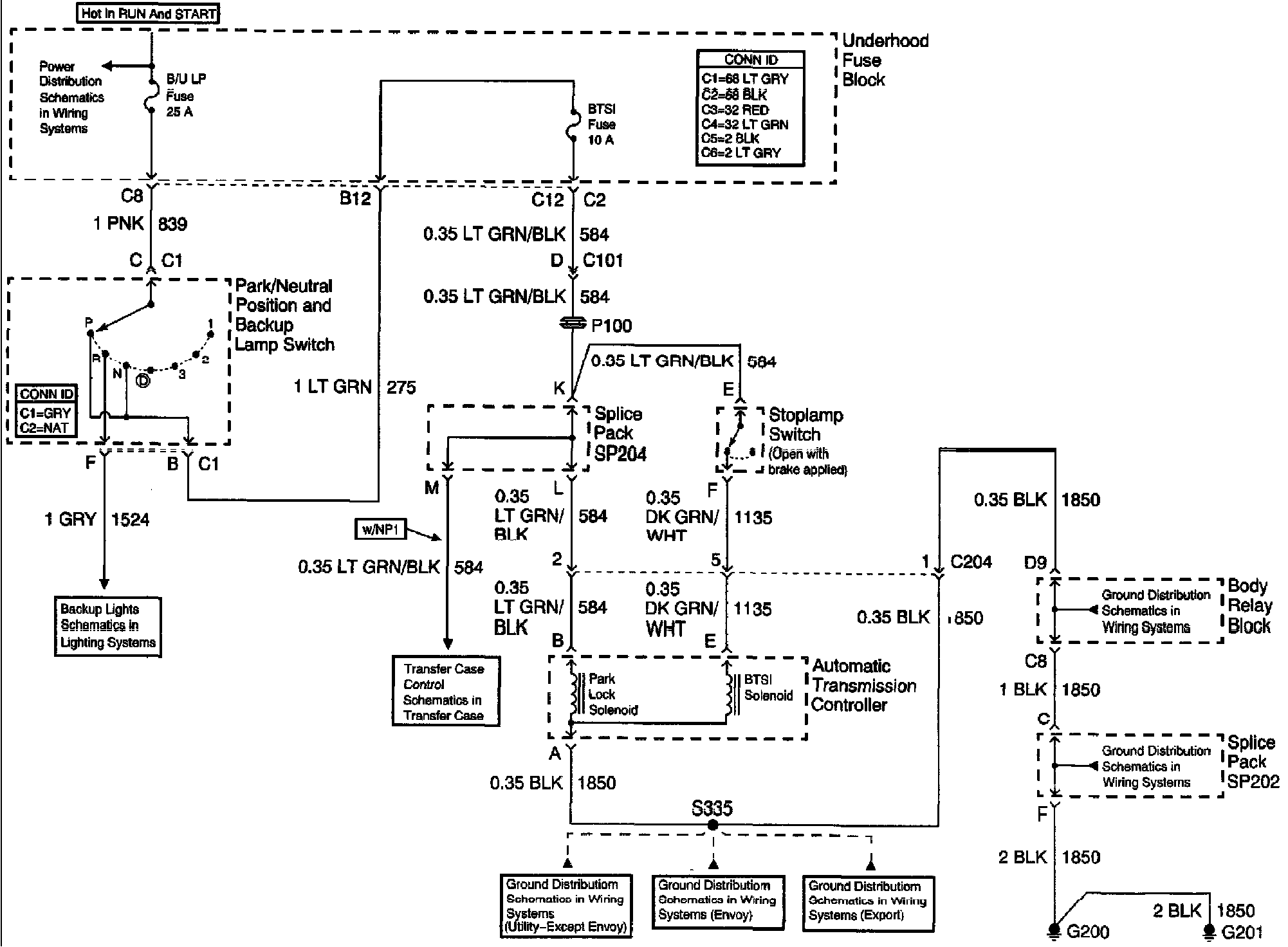

Automatic Transmission Shift Lock Controls Schematic
>>
Utility W/Floor Shift
Utility W/Floor Shift
