Home >> Chevy Truck >> 2000 >> S10/T10 P/U 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Valve >> Diagrams

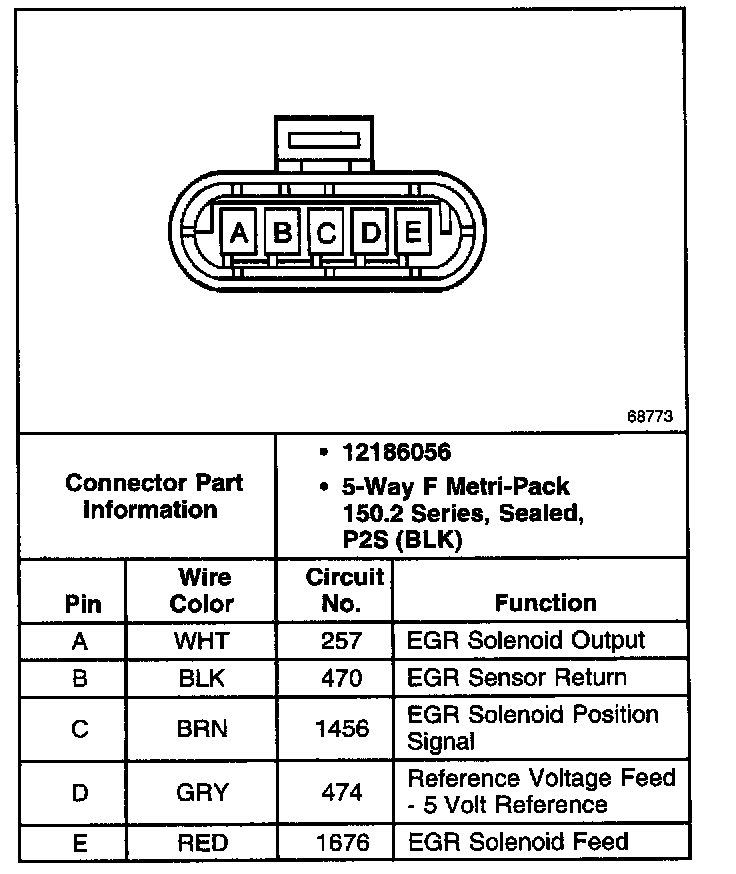

EGR Valve: Diagrams

Exhaust Gas Recirculation (EGR) Valve:
