Evaporative Emission System Hoses/Pipes Replacement (Engine)

REMOVAL PROCEDURE




1. Disconnect the [1][2]EVAP pipe from the EVAP purge solenoid.

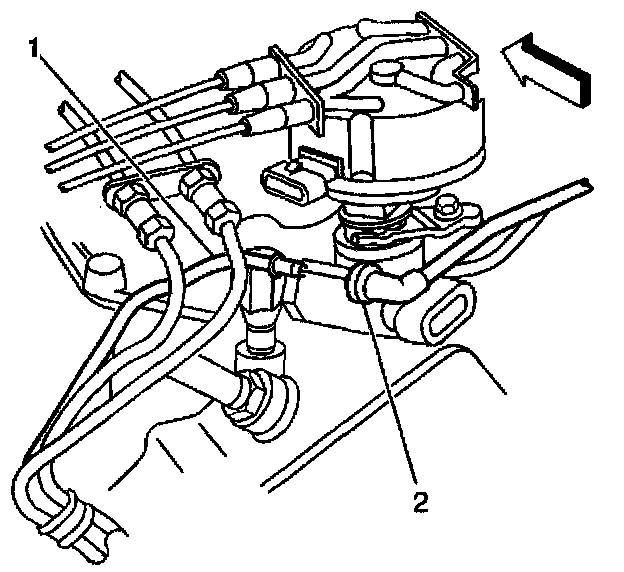

2. Disconnect the [1][2]EVAP (2) pipe from the EVAP front chassis pipe (1).

INSTALLATION PROCEDURE




1. Connect the [1][2]EVAP pipe (2) to the EVAP front chassis pipe (1).




2. Connect the [1][2]EVAP pipe to the EVAP purge solenoid.
