Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Controls
>>
Fuel Delivery & Controls
Fuel Delivery & Controls

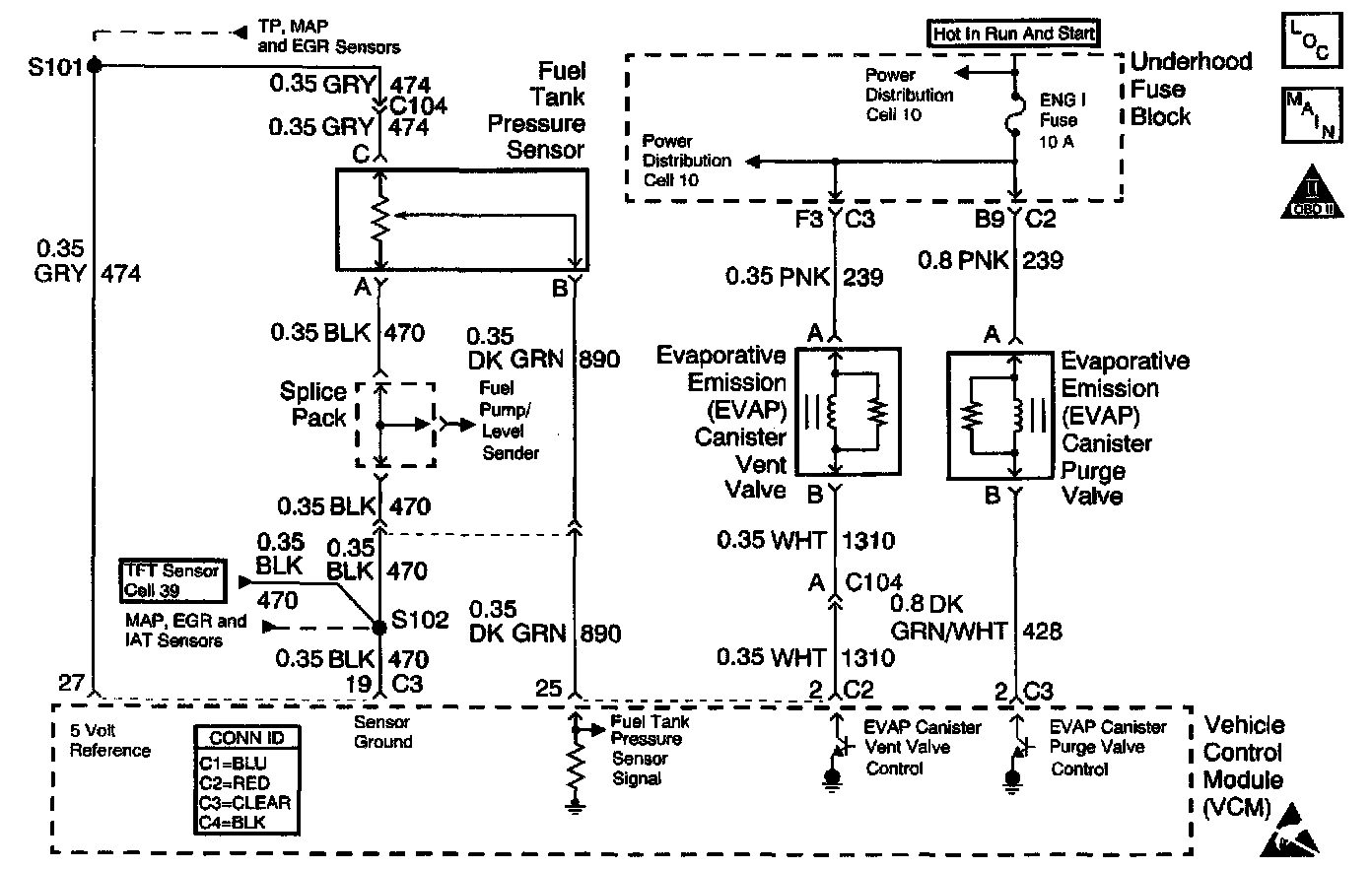

Schematic:

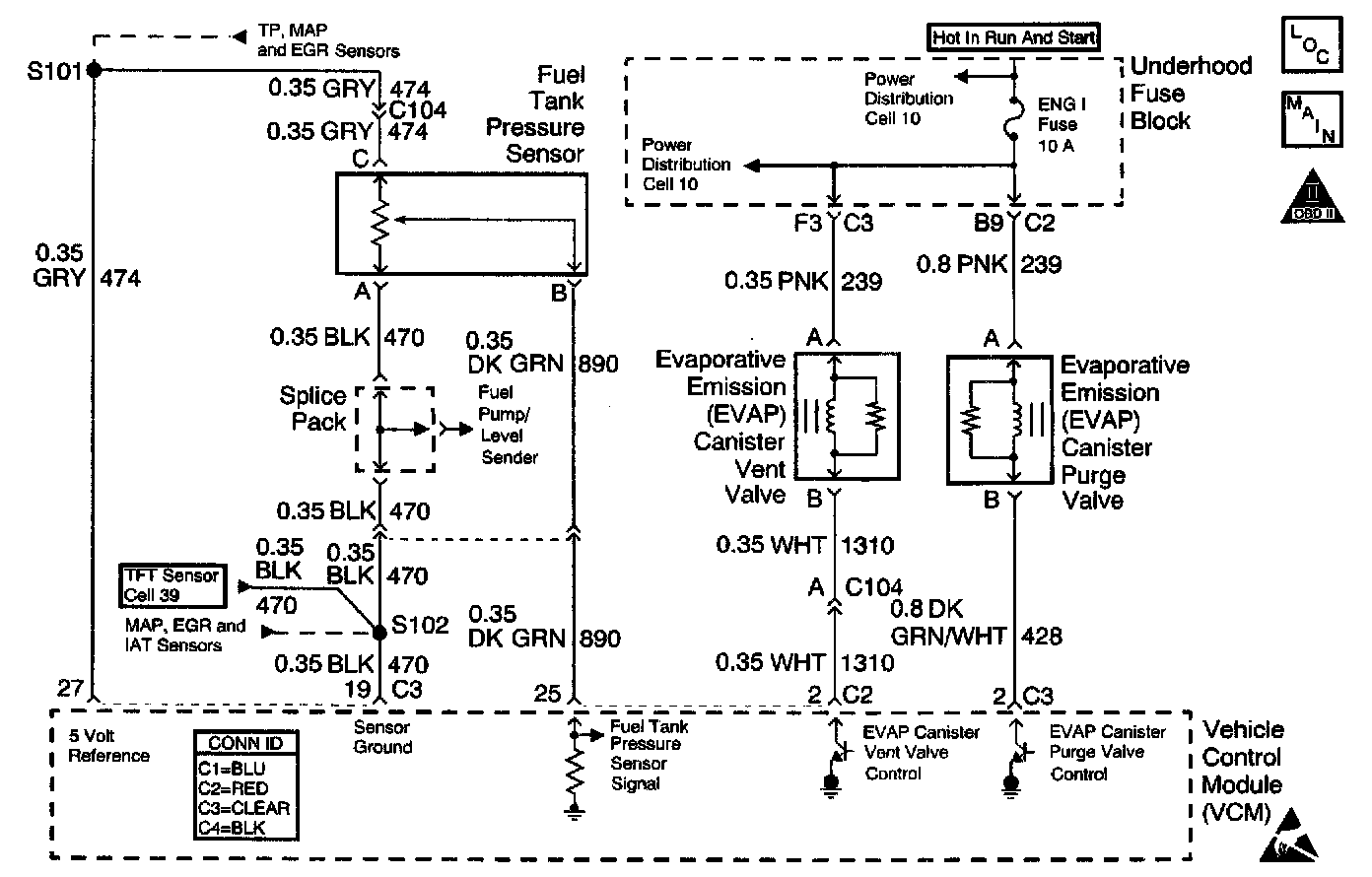

Schematic:
