Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
ECM B, ECM I And GAUGES Fuses, Ground, Generator And MIL
ECM B, ECM I And GAUGES Fuses, Ground, Generator And MIL

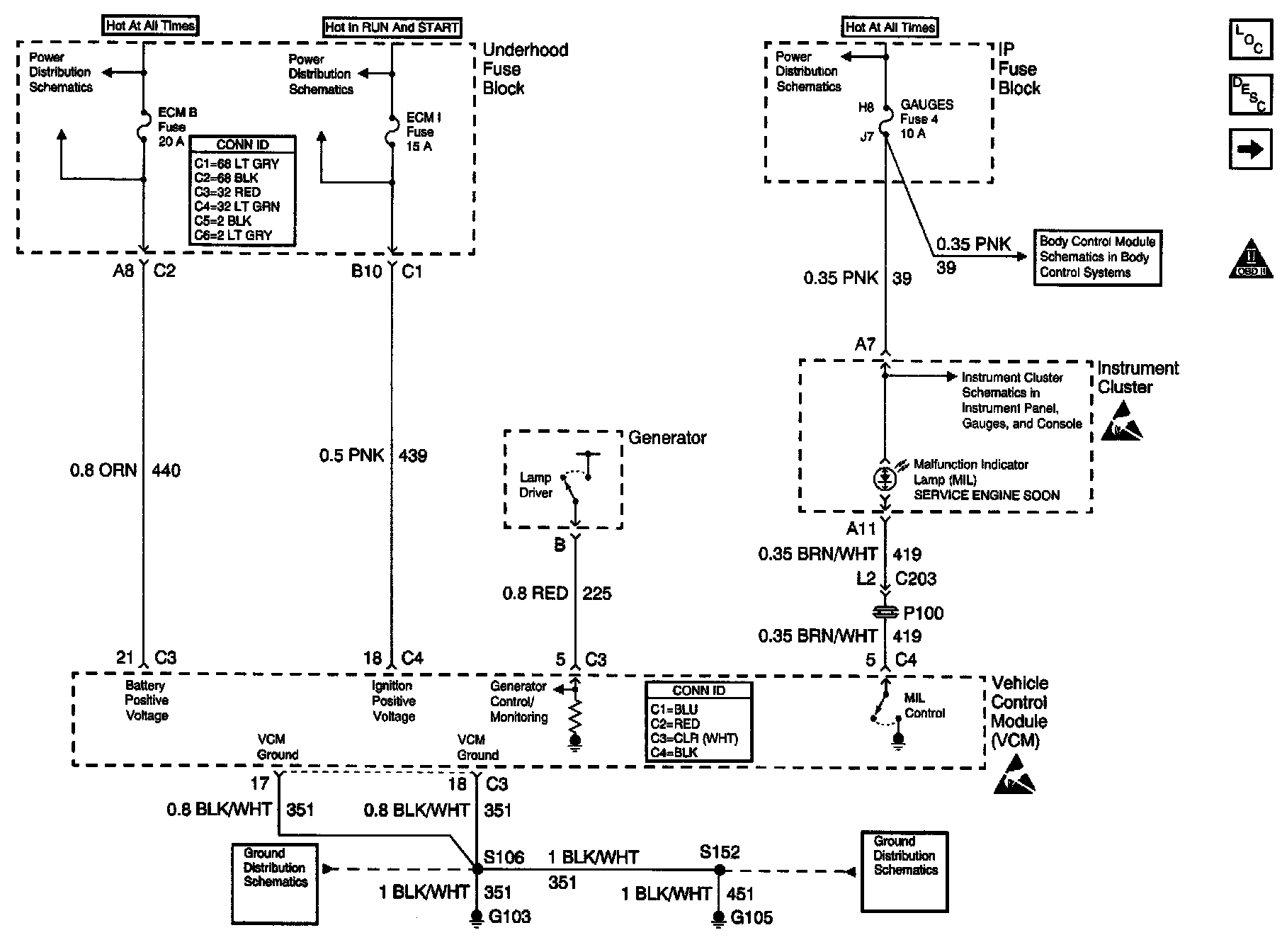

Engine Control Schematics: ECM B, ECM I And GAUGES Fuses, Ground, Generator And MIL:
