Home >> Chevy Truck >> 2000 >> S10/T10 P/U 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Underhood Fuse Block Connector C3

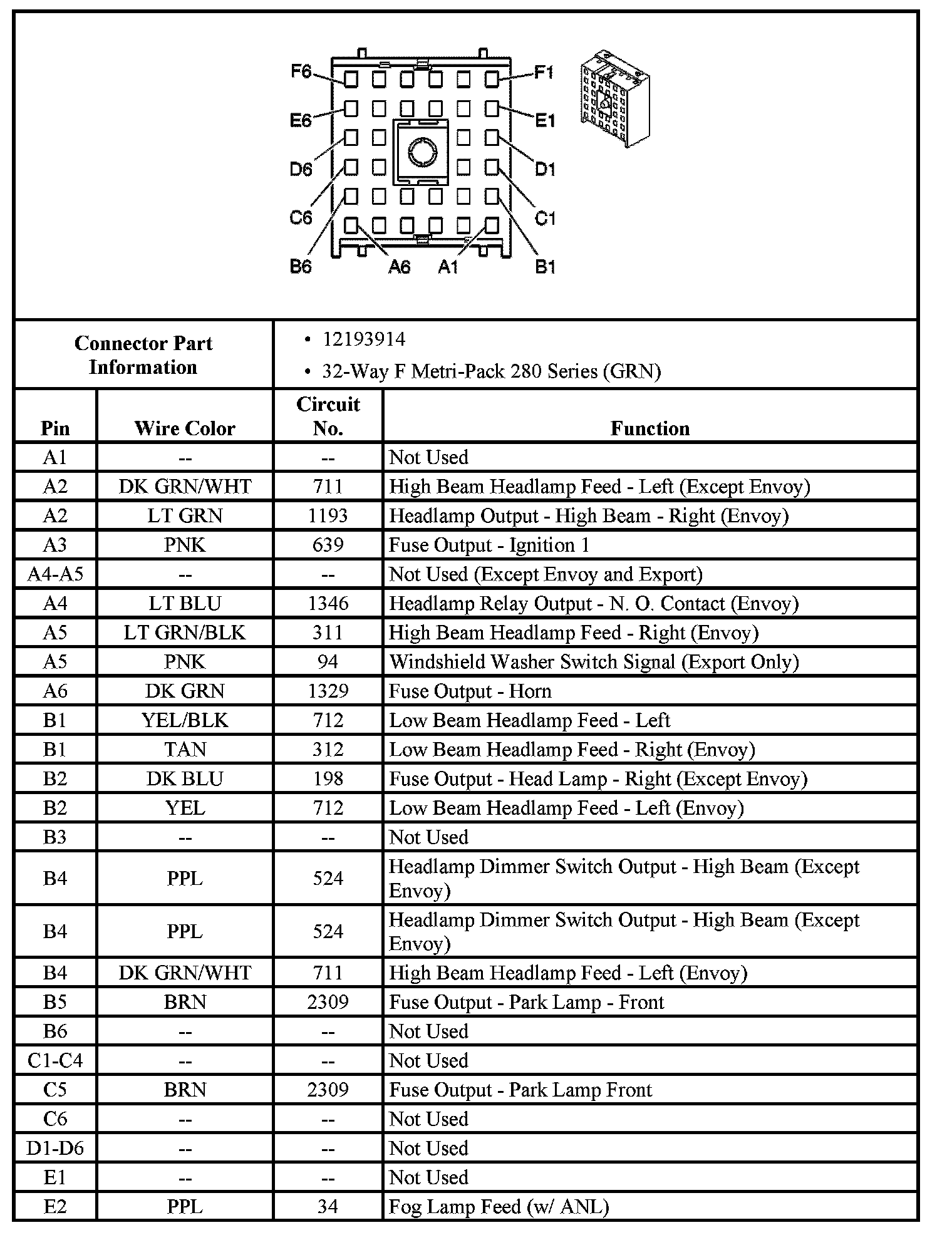

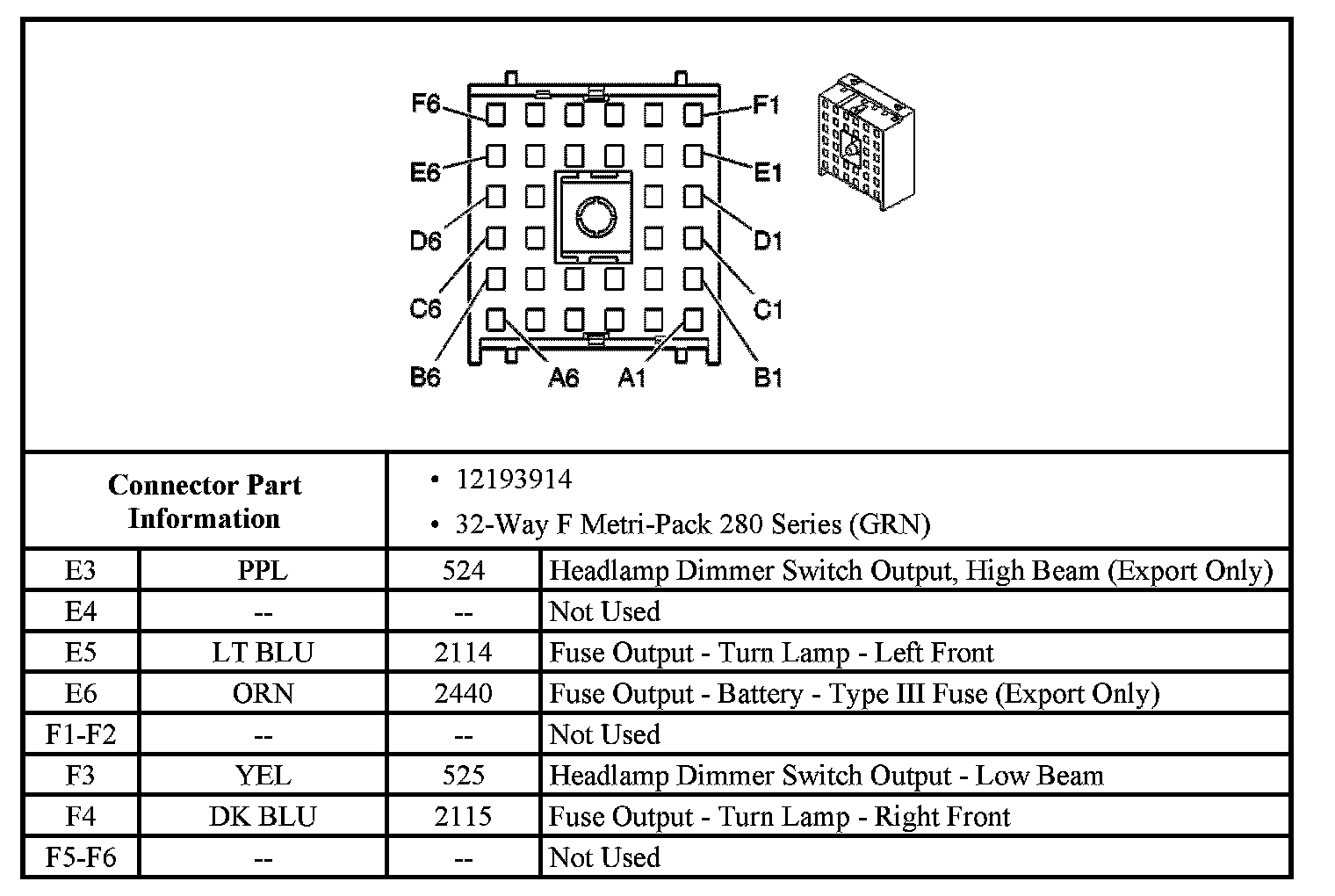

Underhood Fuse Block Connector C3



UNDERHOOD FUSE BLOCK CONNECTOR C3
