Home >> Chevy Truck >> 2000 >> S10/T10 P/U 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Underhood Fuse Block Details >> Base Pickup

Base Pickup

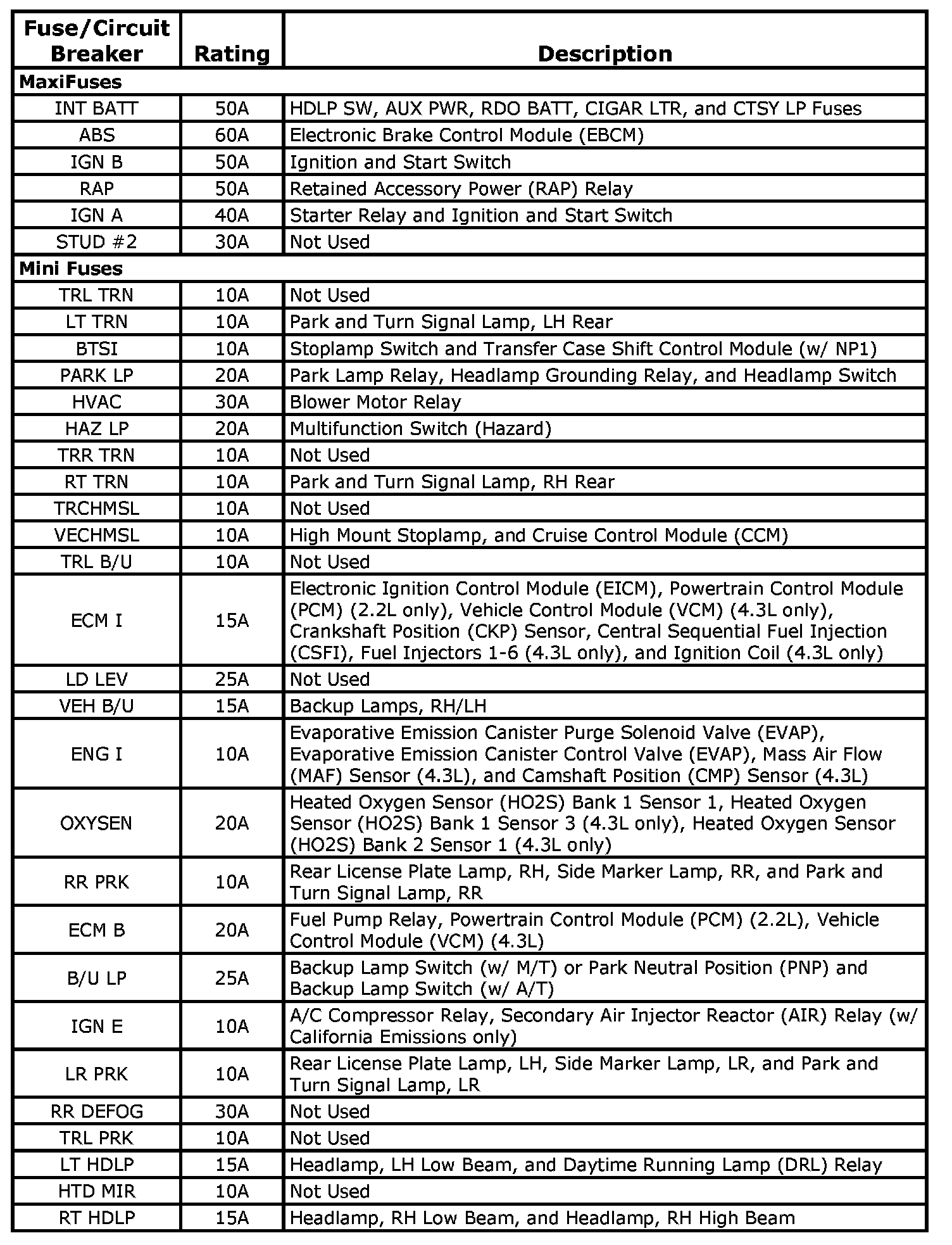

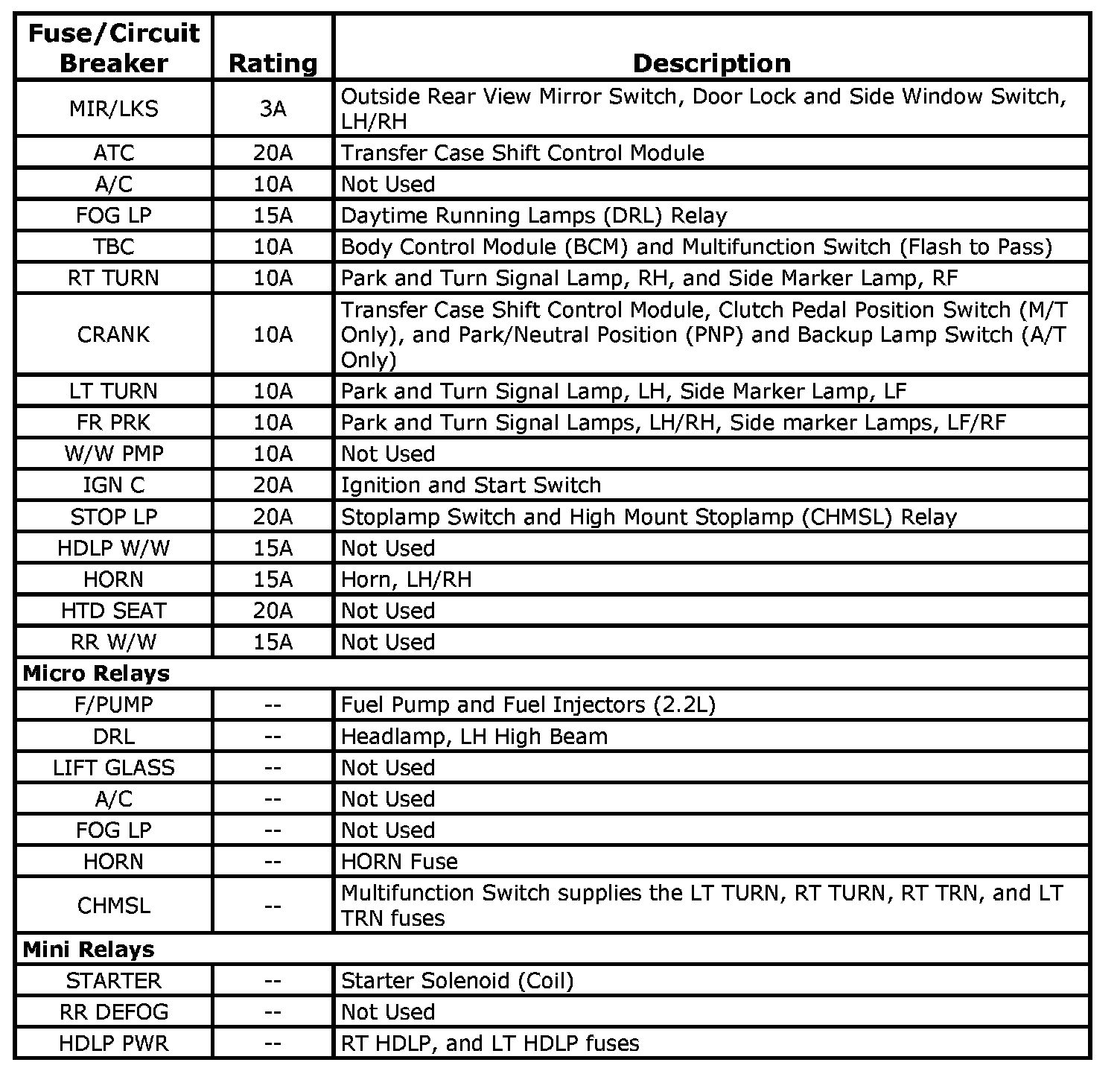

UNDERHOOD FUSE BLOCK DETAILS
(Base Pickup Only)
