P/S Pressure Hose Replacement

Removal Procedure

Notice: Refer to Power Steering Hose Disconnected Notice in Service Precautions.





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the steering linkage shield, if equipped. Refer to Steering Linkage Shield Replacement in Steering Linkage.
3. Install a drain pan under the vehicle.

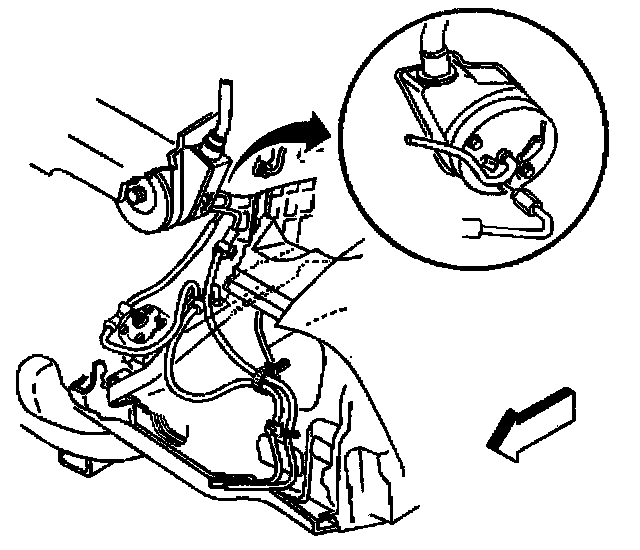

4. Disconnect the pressure hose from the power steering pump.
5. Lower the vehicle.
6. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Powertrain Management.

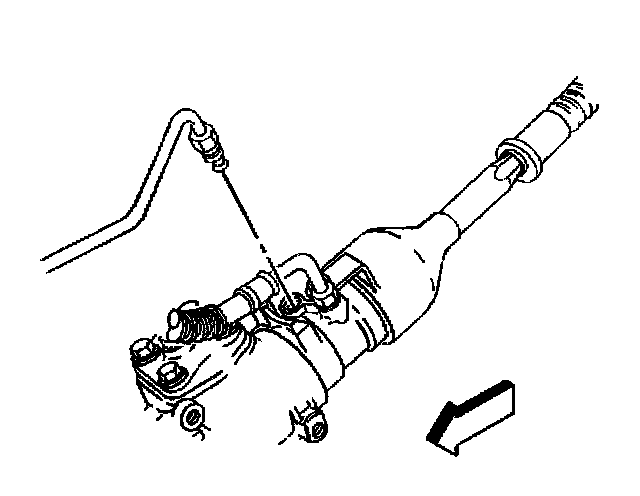

7. Disconnect the power steering gear pressure hose from the power steering gear.
8. Remove the power steering gear pressure hose from the vehicle.

Installation Procedure

Notice: Refer to Notice - Installing Hoses Without Twists or Bends in Service Precautions.





1. Install the power steering gear pressure hose to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

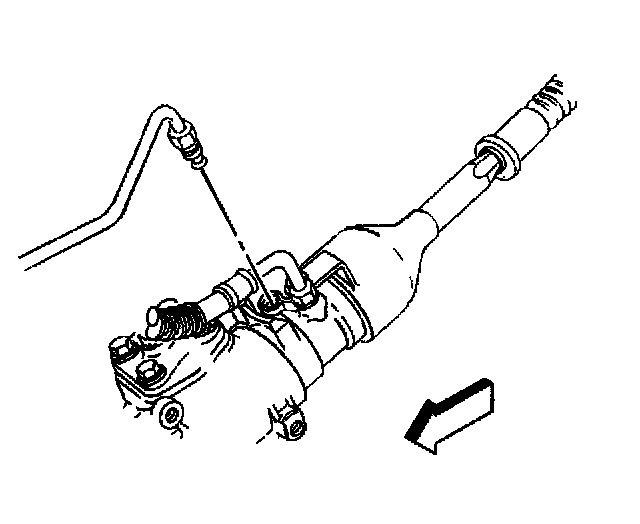

2. Connect the power steering gear pressure hose to the power steering gear.
- Tighten the power steering gear pressure hose to the power steering gear to 30 Nm (22 ft. lbs.).
3. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Powertrain Management.
4. Raise the vehicle.

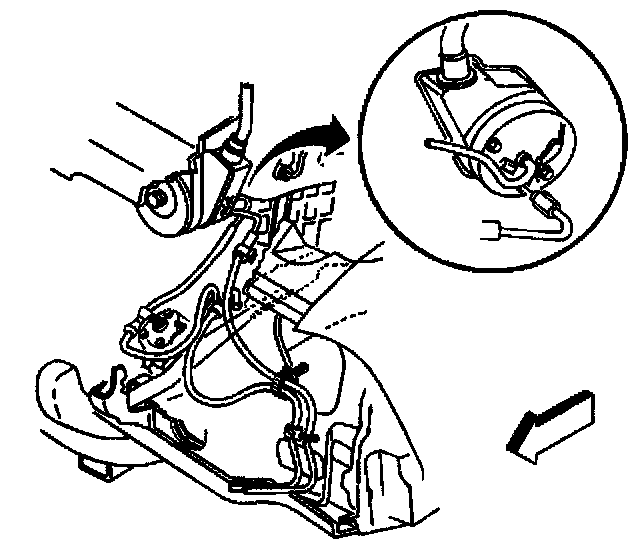

5. Connect the power steering gear pressure hose to the power steering pump.
- Tighten the power steering gear pressure hose to the power steering pump to 25 Nm (18 ft. lbs.).
6. Remove the drain pan from under the vehicle.
7. Install the steering linkage shield, if equipped. Refer to Steering Linkage Shield Replacement in Steering Linkage.
8. Lower the vehicle.
9. Bleed the power steering system. Refer to Bleeding the Power Steering System.
