Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
HVAC System - Manual
>>
Air Delivery/Temperature Control Schematics
>>

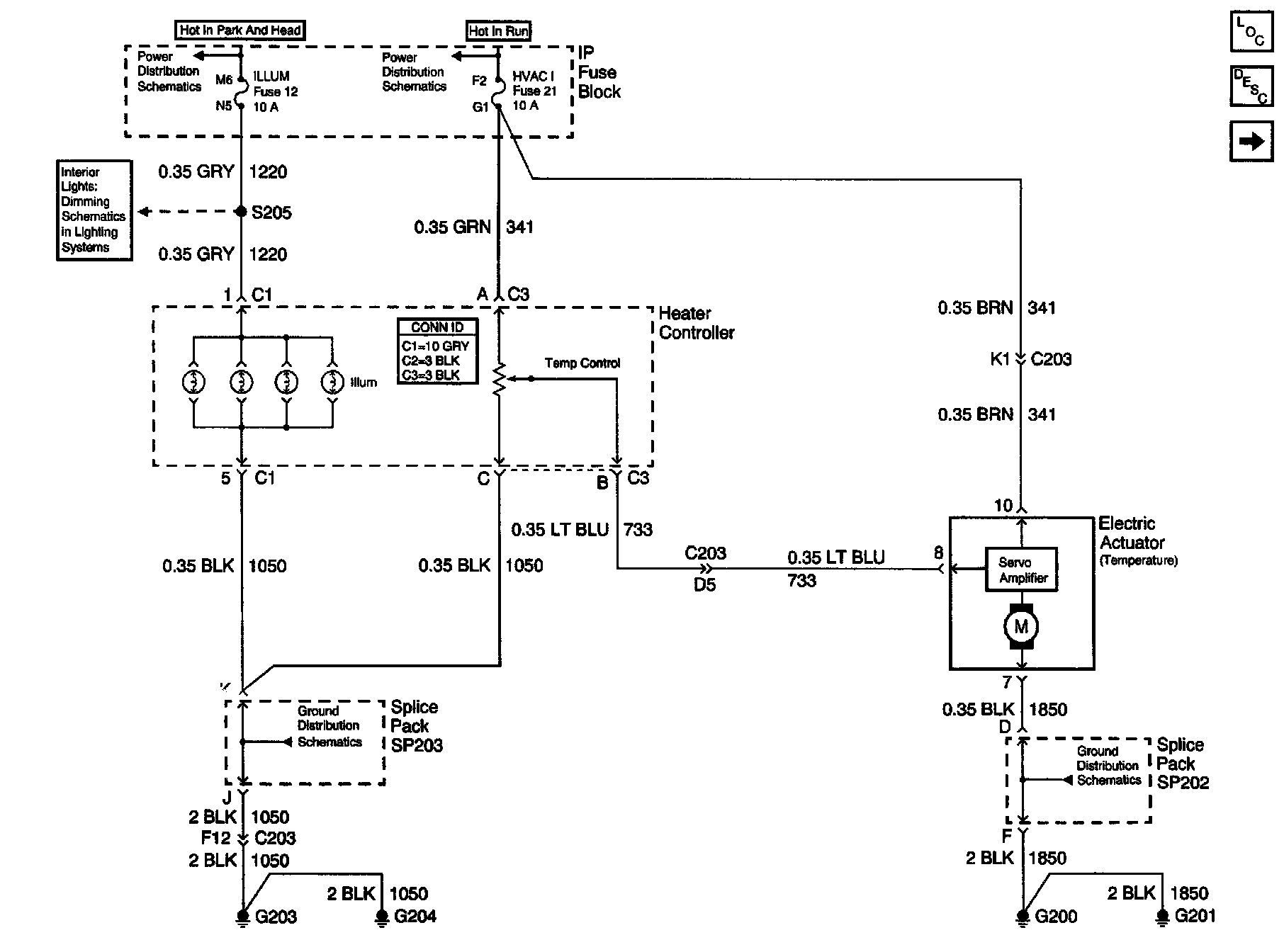

Air Delivery/Temp Control - Heat Only
Air Delivery/Temp Control - Heat Only
