Chevy Truck
>>
2000
>>
S10/T10 P/U 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sunroof / Moonroof Module
>>

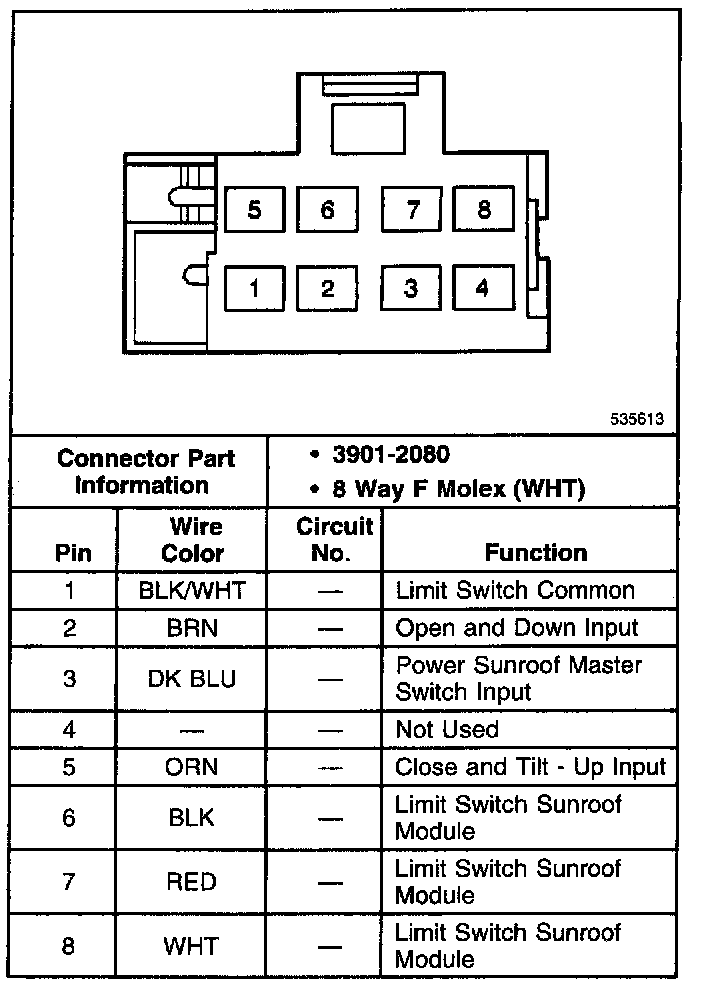

Sunroof Module Connector C2
Sunroof Module Connector C2
Sunroof Module Connector C2:
